YINDA stainless steel Industrial mill grinder

YINDA stainless steel Industrial mill grinder—Safe, high quality, efficient, uniform powder

YINDA industrial mill grinder, also known as an industrial mill, an industrial grinder, or an pulverizer, is a multifuntional machine used in various industries to grind dy materials into smaller particles or powders. These grinders are designed to handle large quantities of materials and are often used in food factory, manufacturing, agriculture, chemical industry, pharmaceuticals, and other industrial processes.

The specific design and features of an industrial mill grinder may vary depending on the application and the type of material being processed. However, most industrial grinders consist of a main milling chamber, equipped with grinding media such as pin mill, hammers. The material to be ground is fed into the grinder through a feed chute, and as the disc or the knife rotates, the grinding media crush, grind, or impact the material, reducing its size.

YINDA Industrial mill grinders are commonly used for tasks such as:

Food Processing: YINDA industrial mill grinder can be employed in various food processing applications such as Confectionery Production, Beverage Industry, Flavoring and Seasoning Production, etc.
Pharmaceutical Applications: YINDA industrial mill grinder is also used in the pharmaceutical industry to grind materials for medicinal purposes.
Nutraceuticals and Dietary Supplements: YINDA industrial mill grinder can be used to grind materials for nutraceuticals and dietary supplements.
Chemical Applications: YINDA industrial mill grinder can be used in chemical industry to grind the chemical raw material into suitable size powder to be easier dissolve in liquid or mix in other additives.
Other more areas requiring powder handling

YINDA YDCS coarse crusher for 0.5-20mm
YINDA YDWS pin mill industrial mill grinder for 20-120 mesh
YINDA YDGS turmeric hammer mill industrial mill grinder for 20-60 mesh
YINDA YDWF 300 mesh ACM mill industrial mill grinder for 100-300 mesh

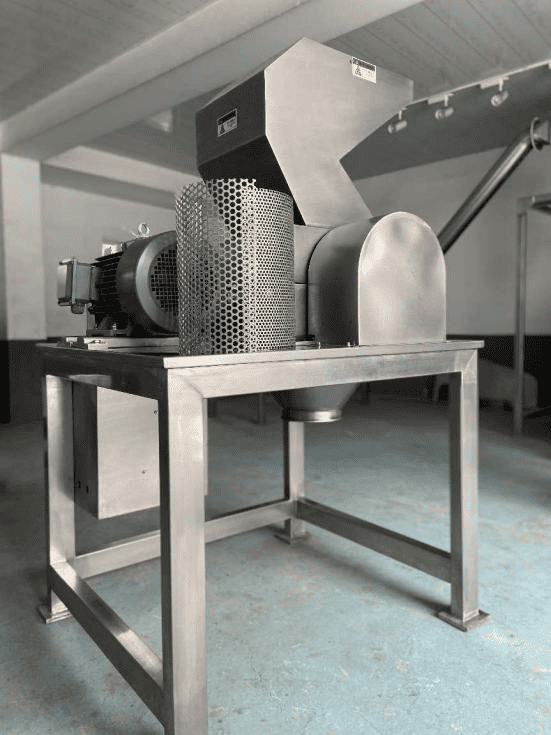

YINDA YDCS ginger coarse crusher

YINDA YDCS ginger coarse crusher industrial mill grinder

https://yindamachinery.com/coarse-crusher/

YINDA YDCS ginger coarse crusher industrial mill grinder is a type of machine or equipment used to reduce the size of large or bulky materials into smaller particles or chunks(0.5-20mm).

Its basic configuration is the hopper, the milling chamber with blade and sieve, the discharge port and the electric control panel. When the material through the hopper into the milling chamber, through the rotating knives and the fixed knives, the compression and impact from materials, and sieves to get the presetted size particle. It is commonly used in industries such as food process, mining, construction, and recycling to break down materials for further processing or disposal.

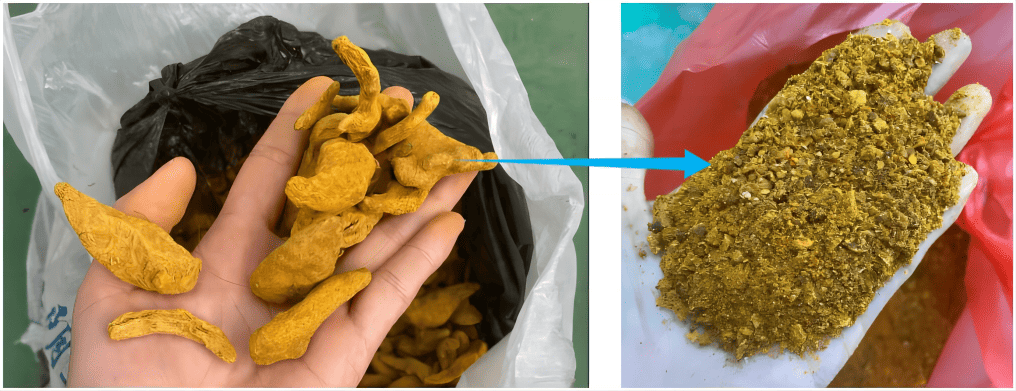

YINDA YDCS ginger coarse crusher industrial mill grinder turmeric particle.

Here are some common features and advantages you may find:

1.Adjustable Settings: YINDA ginger coarse crushers industrial mill grinder offers adjustable settings (filter screen, blade size, etc) to control the output size or coarseness of the crushed material, allowing for customization based on specific requirements.

Safety Features: YINDA ginger coarse crusher industrial mill grinder incorporates safety features like safety guards, emergency stop buttons, and overload protection to ensure operator safety during operation.
Easy Maintenance: YINDA YDCS ginger coarse crusher industrial mill grinder is designed with ease of maintenance in mind. the accessible components that can be easily inspected, cleaned, or replaced, minimizing downtime.
Size Reduction: effectively reduce the size of large or bulky materials without the limitation from density, sticky, fibers, etc to make them more manageable for further processing, transportation, or disposal.
Increased Surface Area: Coarse crushing increases the surface area of materials, which can be beneficial for subsequent processes such as fine powder grinding, mixing, or chemical reactions to improve the efficiency of downstream equipment or processes by facilitating faster and more uniform processing.
Cost-Effectiveness: YINDA YDCS ginger coarse crusher industrial mill grinders can be cost-effective solutions for primary or initial crushing stages, as they generally have lower capital and operating costs than finer crushing equipment.
Customizable Features:a simple dust-free collector.
technical data

Model	YDCS-80	YDCS-100	YDCS-200	YDCS-300	YDCS-400	YDCS-600
Production Capacity (kg/hr)	10-50	60-100	120-200	200-300	300-400	500-600
Feeding size (mm)	＜50	＜80	＜100	＜100	＜100	＜100
Finished size (mm)	1.0-20	1.0-20	1.0-20	1.0-20	1.0-20	1.0-20
Motor (kw)	1.1	1.5	4	5.5	11	15
RPM (r/min)	960	960	960	960	960	960
Dimension (mm)	510450980	6505001100	8006501250	9007001400	9008001440	9009001440
Weight (kg)	180	280	350	450	550	650

YINDA YDWS sugar pin mill industrial mill grinder

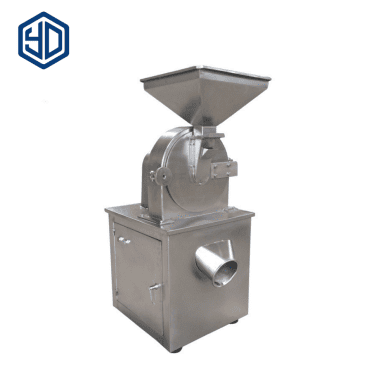

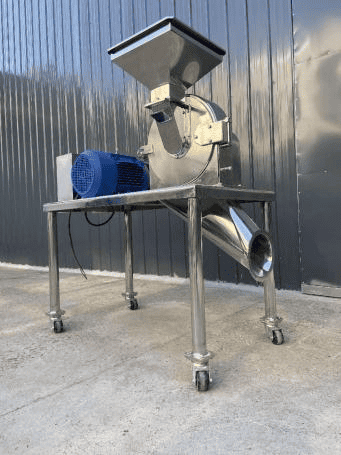

YINDA YDWS single deisgn pin mill industrial mill grinder

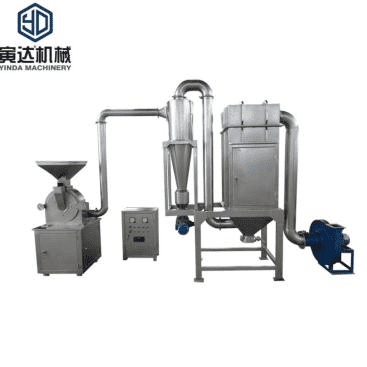

YINDA YDWS spilt design pin mill industrial mill grinder set

Pin Mill Machine

YINDA YDWS sugar pin mill industrial mill grinder is a type of grinding mill used in the food processing industry, specifically for grinding granulated or crystal materials into powdered size. It is also known as a pin mill, a pin mill grinder, or a pin mill pulverizer.

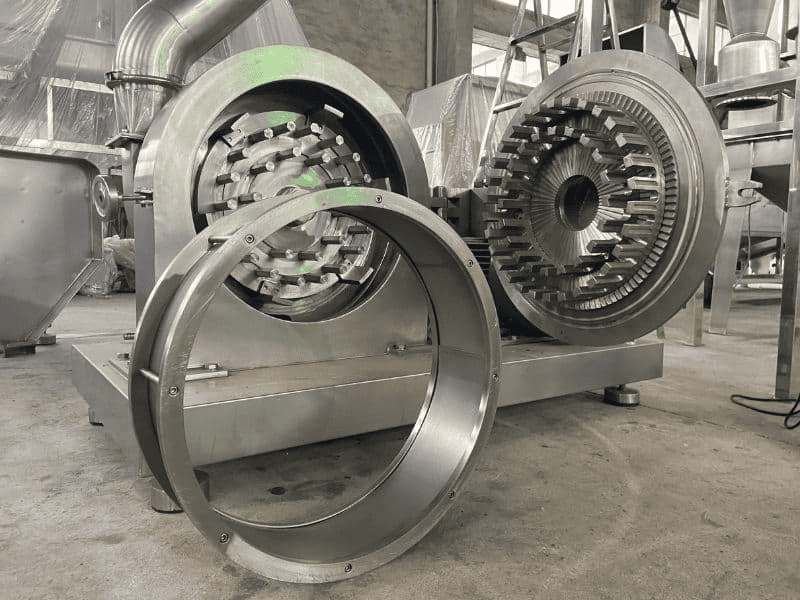

YINDA YDWS sugar pin mill industrial mill grinder consists of a rotor assembly with closely spaced pins or discs on the rotating shaft, a hopper, a discharge port, and an electric control panel. The crystals or granulated materials enter the grinding chamber through an inlet and are impacted by the rotating pins or discs. The high-speed rotation and impact force break down crystals into smaller particles or fine powder through the regular-sized sieve or screen, then be collected and discharged through a discharge port at the bottom of the mill. If the pin mill is equipped with a dust control system, the final powder will be collected through the cyclone separator discharging port, and the other dust or unqualified powder will be collected by the dust-free collector to achieve a higher environmental requirement.

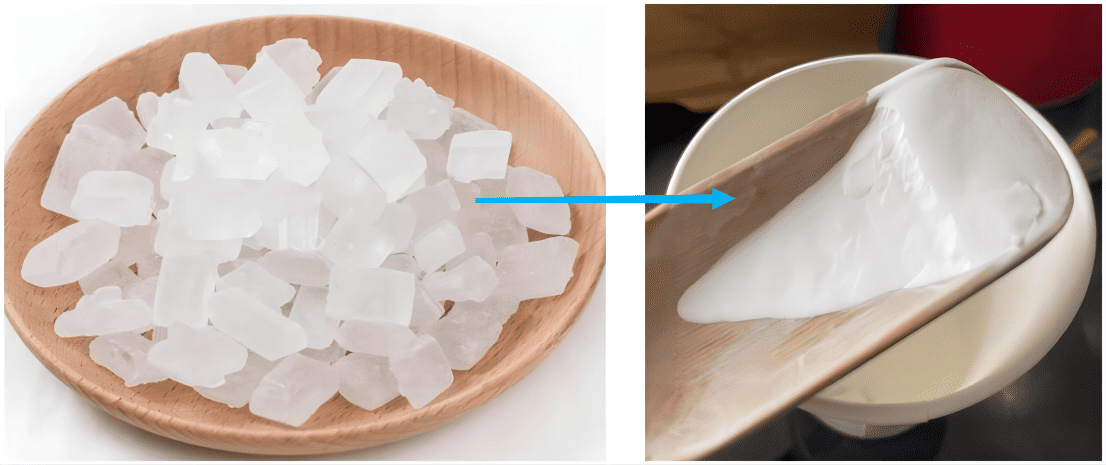

YINDA YDWS sugar pin mill industrial mill grinder crystals to fine powder

YINDA YDWS sugar pin mill industrial mill grinder is designed to produce a fine and uniform powder with a controlled particle size distribution. The grinding process helps to increase the surface area of material, allowing it to dissolve more readily and evenly in various food and beverage, chemical synthesis, pharmaceutical applications.

Here are some advantages to help you know more about it.

Efficient Grinding: YINDA YDWS sugar pin mill industrial mill grinder is highly efficient in grinding granulated, solid, crystals into powdered size resulting in a fine and uniform powder.
Controlled Particle Size: YINDA YDWS sugar pin mill industrial mill grinder provide precise control over the particle size distribution of the powder by adjusting the inner filter screen or sieve.
Uniform Quality: The grinding action of a pin mill grinder ensures consistent and uniform particle size throughout the powder. This uniformity is crucial for various food applications where a consistent texture or dissolution rate is required.
Versatility: YINDA YDWS sugar pin mill industrial mill grinder can handle a wide range of material types. such as food ingredients, spices, and grains, making them versatile machines in the food processing industry.
Hygienic Design: YINDA YDWS sugar pin mill industrial mill grinder is typically constructed using food grade stainless steel 304 or 316L to ensure compliance with food safety standards and facilitates easy cleaning and maintenance. The smooth surfaces and absence of crevices minimize the risk of contamination and make the equipment suitable for use in food production environments.
Energy Efficiency: Compared to some other grinding methods, YINDA YDWS sugar pin mill industrial mill grinder can be energy-efficient. Their compact design and high-speed operation minimize energy consumption while achieving effective grinding results.
Customizable Features:

Water cooling jacket—Effectively reduce the excess heat of the crusher cavity to extend the service life of the equipment

cooling chiller—temperature control mechanisms for heat-sensitive materials

explosion-proof— design for hazardous environments

8.Technical data

Model	YDWS-20	YDWS-30	YDWS-40	YDWS-60	YDWS-80	YDWS-100
Capacity（kg/h)	20-50	50-200	120-400	300-600	600-800	800-1500
Speed of principal axis (r/min)	4500	3800	3600	2600	2000	1600
Input size (mm)	≤10	≤10	≤10	≤12	≤15	≤15
Output size(mesh)	60-120	60-120	60-120	60-120	60-120	60-120
Grinding Motor(kw)	4	5.5	7.5	18.5	37	45
Dust-collector motor (kw)	0.55	0.55	1.1	1.1	1.5	1.5
Grinding machine(mm)	600×600×1200	650×650×1350	750×750×1400	1000×800×1600	1200×1000×1800	1500×1300×1950
Grinding machine with dust collector(mm)	1100×650×1650	1300×750×1850	1350×800×1920	2200×980×2000	2200×1100×2400	2400×1300×2400

YINDA YDGS turmeric hammer mill industrial mill grinder

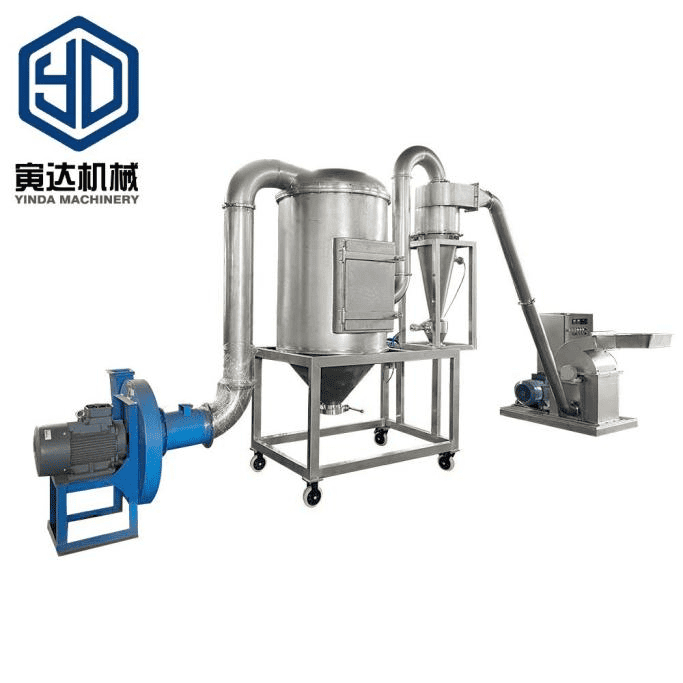

YINDA YDGS turmeric hammer mill industrial mill grinder

https://yindamachinery.com/hammer-mill-grinder/

YINDA YDGS turmeric hammer mill industrial mill grinder is an specifically designed for grinding large capacity needs material into fine powder. It is commonly used in spice processing plants, food processing industries, and herbal medicine manufacturing facilities such as turmeric, ginger, chili, herbs, tea leaves, etc.

YINDA YDGS turmeric hammer mill industrial mill grinder consists of the feeding port, the milling chmaber, the discharge port with the cyclone separator, the pulse dust-free collector, the fan, and the electric control box. It operates by pulverizing fibres, roots, stem, etc with the help of swinging knives and fixed knives attached to a rotating shaft. As the whole blade rotates at high speed, they impact the material, breaking them down into smaller particles. These particles then pass through a screen which controls the size of the final powder.

YINDA YDGS turmeric hammer mill industrial mill grinder 40 mesh turmeric powder

Here are some key features and benefits of using the YINDA YDGS turmeric hammer mill industrial mill grinder:

Efficiency: YINDA YDGS turmeric hammer mill industrial mill grinder is known for its high-speed operation and efficient grinding capabilities, allowing for a large quantity of materials to be processed within a short period.
Versatility: YINDA YDGS turmeric hammer mill industrial mill grinder can also process a wide range of spices, grains, herbs, and 10%-15% oil-contented materials, making them suitable for various applications in the food, pharmaceutical, and chemical industries.
Consistency: ensure uniform particle size distribution, resulting in a consistent and high-quality powder.
Easy operation and maintenance: Hammer mills are relatively easy to operate and maintain. They typically have a simple design, and the screens or plates can be easily replaced when needed.
Scalability: YINDA YDGS turmeric hammer mill industrial mill grinder comes in different sizes and capacities, allowing businesses to choose a model that suits their production requirements.
Customizable Features:

Water cooling jacket—Effectively reduce the excess heat of the crusher cavity to extend the service life of the equipment

cooling chiller—temperature control mechanisms for heat-sensitive materials

explosion-proof— design for hazardous environments

Technical data

Model	YDGS-400	YDGS-600	YDGS-800	YDGS-1000
Production capacity （kg/hr)	80-300	300-500	400-1000	800-1500
Feeding size （mm）	<20mm	<20mm	<20mm	<20mm
Finished size (mesh)	20-100	20-100	20-100	20-100
Grinding motor (kw)	22	37	45	55
Blower motor (kw)	11	15	18.5	22
Feeding motor (kw)	0.25	0.25	0.25	0.25
Discharge motor (kw)	0.75	0.75	1.1	1.1
Dimension (mm)	540013002700	680013002700	780018003200	880020003300

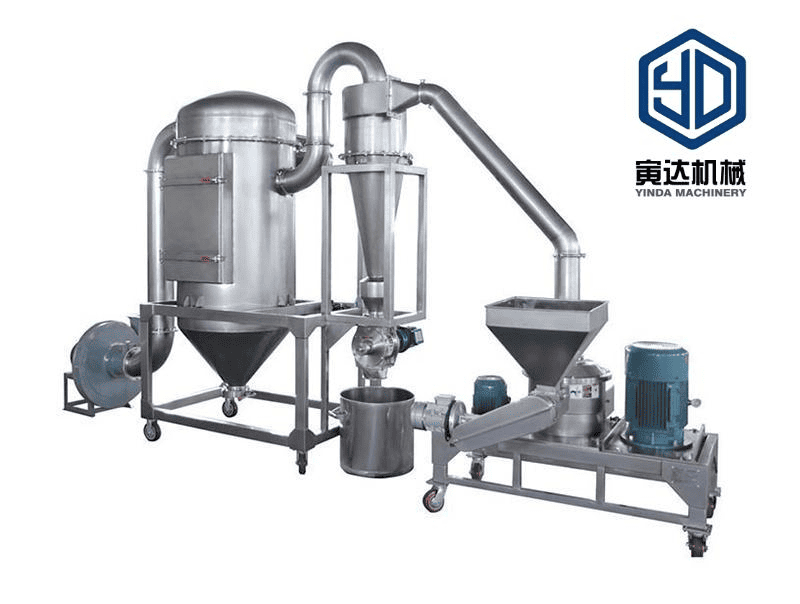

YINDA YDWF 300 mesh Superfine ACM mill industrial mill grinder

YINDA YDWF 300 mesh ACM mill industrial mill grinder

https://yindamachinery.com/air-classifier-mill/

YINDA YDWF 300 mesh ACM mill industrial mill grinder is also know as the super fine powder making machine, the micro powder Air Classifier Mill, that is commonly used in the field of powder processing. It is designed to grind and classify various materials into super fine powders. It consists of the main milling part, the cyclone separator with the discharging port, the pulse dust-free collector, the centrifugal fan, and the electric control box.

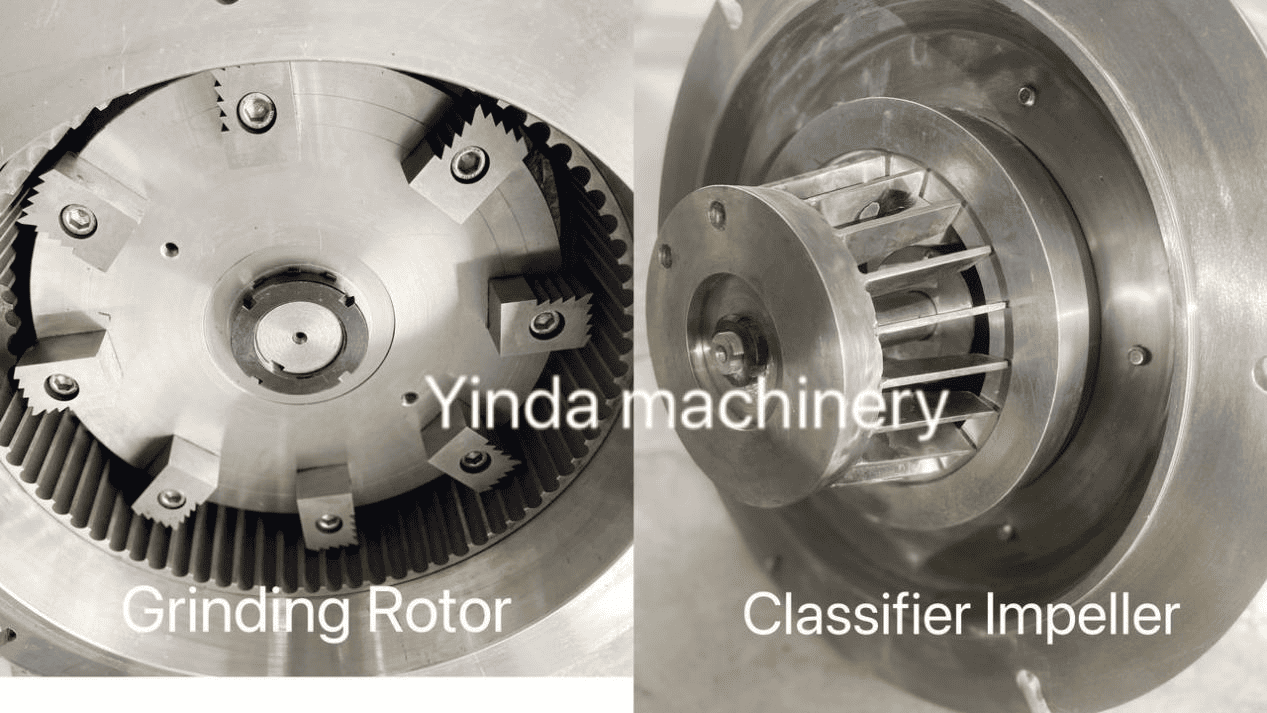

YINDA YDWF 300 mesh ACM mill industrial mill grinder operates on the principle of impact grinding and air classification. The material to be ground is fed into the mill chamber, where it is impacted by high-speed rotating blade. The impact force reduces the particle size of the material, resulting in fine powder formation.

Simultaneously, air is introduced into the mill chamber through an air classifier. The air flow carries the particles upward, and the classifier separates them based on their size and density through the setted inverter parameter. The finer particles are carried through the classifier and collected in a cyclone, while the larger particles are returned to the grinding zone for further processing.

YINDA YDWF 300 mesh ACM mill industrial mill grinder 300 mesh powder

YINDA YDWF 300 mesh ACM mill industrial mill grinder offers several advantages in industrial applications.

Precise Particle Size Control: YINDA YDWF ACM mill industrial mill grinder allows for precise control over the particle size distribution of the ground material. It enables the production of fine powders with a consistent and narrow particle size range. This is crucial in many industries where specific particle size specifications are required for optimal product performance.
Versatility: YINDA YDWF ACM mill industrial mill grinder is capable of grinding a wide range of materials, including minerals, chemicals, pharmaceuticals, food products, and more. It can handle both brittle and heat-sensitive materials effectively. This versatility makes it a valuable tool in various industries.
Efficient Grinding and Classification: This integrated grinding and classification process provide efficient and effective particle size reduction.
Consistent Product Quality: Consistency is particularly important in industries where product performance and uniformity are critical.
Easy to Clean and Maintain: YDWF ACM mills are designed with easy access to internal components, facilitating cleaning and maintenance procedures. This is crucial in industries that require frequent material changes or stringent cleanliness standards.
Energy Efficient: The YDWF ACM mill is designed to minimize energy consumption while maintaining high grinding efficiency. The integrated air classification system reduces the amount of oversized particles that need further grinding, resulting in energy savings.
Customizable Features:

cooling chiller—temperature control mechanisms for heat-sensitive materials

explosion-proof— design for hazardous environments

other customized options based on the industry needs

Technical data

Model	YDWF-15	YDWF-20	YDWF-30	YDWF-60	YDWF-80	YDWF-100	YDWF-120
Production capacity (kg/h)	20-50	100-200	200-400	300-800	500-1000	600-1200	800-2000
Speed of principle axis (r/min)	5800	3600	3600	2300	2300	2300	2300
Feeding size (mm)	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Crushing fineness (mesh)	80-320	80-320	80-320	80-400	80-400	80-400	80-400
Motor power (kw)	Total motor:17.62kw	Total motor:26.5kw	Total motor:51.35kw	Total motor:77.1kw	Total motor:105.6kw	Total motor:135.6kw	Total motor:165.6kw
Overall dimension(mm)	3000×1600×2600	3500×1900×3300	3800×1900×3300	5000×2600×4300	5800×2800×4300	5800×3000×4300	5800×3200×4300

In the end, there is a point that we can’t ignore, that safety precautions should be taken when operating industrial mill grinders due to their powerful and potentially hazardous nature. Proper training and adherence to safety guidelines are crucial to ensure the well-being of operators and maintain the integrity of the equipment.

So YINDA MACHINERY will be the important role in your production process, our professional team will share the positive, insparing, safety, high quality solution and service with you to help you achive the best powder handling resuslt.

Don’t hesitate, come to contact us at dennie@yindamachinery.com or yindachina@gmail.com Tel(WhatsApp): +86 13914192807
