Cost-effective Hammer Mill Grinder Factory
As aHammer Mill Grinder factory with more than 20 years of production and service experience in China, Yinda manufactures and supplies various types of hammer mills Grinder made of high quality stainless steel, which meet pharmaceutical and food grade standards and can also be designed according to various industrial standards.
Hammer mills Grinders are mainly used in the pharmaceutical, chemical and food industries to crush dry and brittle materials, the advantages of hammer mills over pin mills are high output and fast discharge.
Please contact us and let us know how we can help when it comes to hammer mills grinder, we are always here to help you.
- Fit for small investment.
- Dust-free Production Design.
- High Quality for Final Size.
Yinda: Your Reliable Hammer Mill Grinder Supplier In China
1)if your project on powder processing needs to import an Hammer Mill Grinder, then Yinda will be your best choice to manufacture your Hammer Mill Grinder orders.
2)Yinda is one of the leading Hammer Mill Grinder suppliers and all of our Hammer Mill Grinder can meet ISO/CE/GMP standards, and we will provide a competitive price based on your project.
3)Yinda will give you the best Hammer Mill Grinder solution based on your project’s requirements with our professional technical team, and know more about expereince on powder and particle processing that we enjoy sharing with customers.
- Specifications
- Main Features
- Package And Shipment
- Industrial Applications
- Ultimate service
| Model | YDGS-400 | YDGS-600 | STGS-800 | YDGS-1000 |
| Moto power(kW) | 22 | 37 | 45 | 55 |
| Production capacity(kg/hr) | 100-1000 | 300-1500 | 600-2000 | 1000-3000 |
| Spindle speed(r/min) | 4000 | 4000 | 4000 | 4000 |
| Feeding size(mm) | ≤ 20 | ≤20 | ≤ 20 | ≤ 20 |
| Crushing fineness(mesh) | 20-120mesh | 20-120mesh | 20-120mesh | 20 -120mesh |
| Overall size(L*W*H)mm | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3000 |

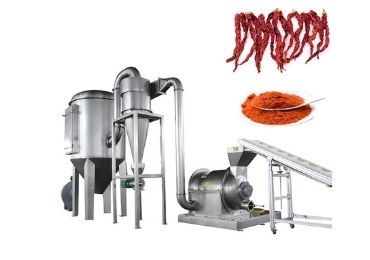

Yinda Hammer Mill Grinder can feed directly with big size materials and grind powder at 20-120 mesh (spices powder can meet 30- 60mesh).

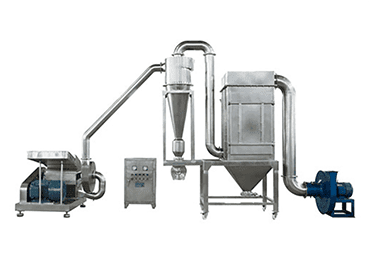

It is made up of hammer mill, cyclone discharge, dust collector, blower, and control box. Since it features a simple structure, firm, and stable operation and good crushing effect, the comminuted material can be discharged directly from the grinding chamber of the host machine and the desired granule size can be obtained by installing screens with different apertures.
It is designed according to GMP standard and wholly made of stainless steel, the inner surface of the enclosure becomes smooth through processing, thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
Hot-selling Equipments For Your Powder Processing
Hammer Mill Grinder– The Perfect FAQ Guide
If you’re wondering whether a hammer mill grinder is something that could assist and benefit you and your business, you need to find out all information about it first.
In this FAQ guide, you will learn everything about hammer mill grinders that you need to know. But, apart from that, we will also educate you in terms of how you can find the best hammer mill grinders in the market today!
So, sit back, relax, and get ready to learn hammer mill grinders like you never have before!
What is a Hammer Mill Grinder Used For?
Figure 1 – A hammer mill grinder that is to be used for food processing
The purpose of a hammer mill grinder is to shred, crush, and to reduce the size of particles and substances into smaller, finer, and tinier pieces using little hammers that have edges that are capable of cutting and slicing.
Oftentimes, hammer mill grinders are used in the food and agricultural sector as it is the machine that’s used to grind spices, leaves herbs, as well as mill flour.
What’s the Difference Between an Pin Mill Pulverizer and a Hammer Mill Grinder?
Many people think that hammer mill grinders and pulverizers are the same.
Figure 2 – A medium-sized pin mill pulverizer for industrial application
They are not wrong in that part because they both carry the same goal and that is to reduce the size of a particular substance or material.
However, they’re not entirely the same. To help you with it further, here’s a quick summary that outlines the differences between a hammer mill grinder and an impact pulverizer.
Hammer mill grinders do the job through continuous movement of the hammers work with shear and impact force to reduce the size. Pin mill pulverizers, on the other hand, rely on force and impact to reduce, crush, and to pulverize materials, reducing their sizes.
One of the primary differences is that hammer mill grinders can produce smaller particles and substances, usually in the sizes of 3mm and below, while impact pulverizers produce fair coarse-like substances and particles.
Benefits of Yinda hammer Mill Grinder:
●Simple structure ,easy to install and maintain.
●Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
●Dust can be collected in dust collecting box during production.
●During production,temperature remains normal, will not rising.
●It can grind spice and oil material with oil content 10%~25%.
Specifications of a Hammer Mill Grinder
Before you decide on which hammer mill grinder to purchase, it is imperative that you take a look at the different specifications first.
To let you know more about it, here are a few of the specifications of hammer mill grinders that you might want to take a look at:
Grinding Disc Size (mm)
This refers to the size of the hammers that would break down and reduce the size of the particles or the substances that you input into the machine.
You want a size that’s not too big and not too small; you can use the area of work as your basis on what the right size should be.
Power
Power is the technical parameter that refers to the requirement of the machine’s power. It’s often displayed and discussed in the kW measurement.
Product or Result Size
Probably the specification you want to put all your focus on is the product or the result size. Since this is what the end-goal is of every hammer mill grinder.
Typically, the product or the result size should be anywhere between 20 and 80 mesh.
Capacity
The capacity is the specification that refers to the overall ability of your machine to produce. Mostly, you’ll find the capacity to be in the measurement of kilograms per hour (kg/h).
Rotation Speed (max)
And last, but most definitely not least would be the rotational speed. Obviously, this is the specification or the technical parameter that refers to the maximum speed that the hammers are capable of spinning.
You might want to take note of these specifications first before purchasing a hammer mill grinder because if you’re not aware of these things, you might end up not getting the exact size of the product you want to produce.
How to Choose a Good Hammer Mill Grinder?
In purchasing a hammer mill grinder, you want to first make sure that you know what you’re looking for.
The best questions you need to ask yourself include:
- What materials are you going to work on?
- How long do you want the crushing or the size reduction to take place?
- What’s the power that you are looking for in a hammer mill grinder?
By asking these questions, you’ll easily be able to point out a lot of things when it comes to what type of hammer mill grinder you want to purchase.
A couple of points to remember in choosing a good-quality hammer mill grinder are:
Raw Materials You’ll Work On
Not all hammer mill grinders are the same. There are machines that are able to work on dry materials, while there’s only a specific number of hammer mill grinders that can work on oily, greasy, and wet materials.
Speed of the Spindle
Contrary to popular belief, the speed of the spindle is not actually an influential factor. However, it’s a contributing feat in determining the final products that are going to be produced.
But, then again, the higher the speed, the faster and the more efficient the process will be.
Maintenance and Care For the Machine
Don’t be the type of person who is not caring and maintaining maintaining the machine on a regular basis.
Some hammer mill grinders are fairly easy to clean, while there are those, especially small ones that are more difficult and more challenging.
So, make sure that you get and purchase a machine that’s not that hard or difficult to maintain.
Where Can You Purchase the Best Hammer Mill Grinders?
Yinda Machinery is, so far, the best and the most trusted hammer mill grinder manufacturer in the country. Being in service in the industry for more than a decade, you will never have any trouble or problem choosing us as the manufacturer of your hammer mill grinder.
All our hammer mill grinders come with self-cleaning mechanisms, which can be effective especially if you don’t want to spend time cleaning them every after use.
In addition to that, our hammer mill grinders are made out of the best-quality raw materials, so, you can be sure that it would not break or damage easily.
Aside from our hammer mill grinders, you can also bank and rely on us if you need other types of powder handling machines and equipment, some of which include tray dryers, 3D mixers, ribbon blenders, air classifier mills (ACMs), and many more!
