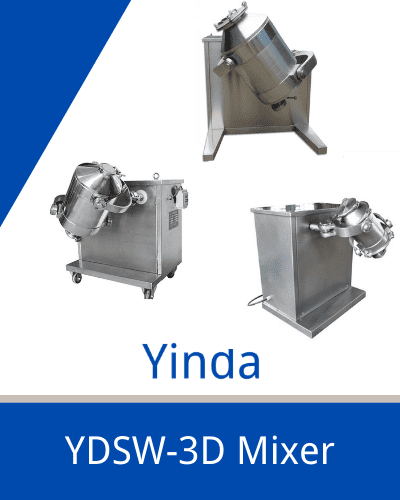

Yinda chemicals three dimensional mixer is one ideal mixer among all kinds of mixers.
Materials have no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing, also used for mixing the powder state and grain state materials with the high uniformity in the pharmaceutical, chemical, food, light-industry, electronic, mechanical, metallurgical and other science and technology institutes.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipping Port: Shanghai Port
- Warranty: 12 moths
- Introduction
- Technical specifications
| Model | YDSW-50 | YDSW-100 | YDSW-200 | YDSW-300 | YDSW-400 | YDSW-500 | YDSW-600 | YDSW-800 | YDSW-1000 |
| The volume of mixing barrel(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Max. loading volume(L) | 40 | 80 | 160 | 240 | 320 | 400 | 480 | 640 | 800 |
| Spindle speed(r/min) | 8-12 | ||||||||
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Overall dimension(mm) | 1000×1400×1100 | 1200×1700×1200 | 1400×1800×1500 | 1800×1950×1700 | 1800×2100×1800 | 1900×2000×1950 | 1900×2100×2100 | 2200×2400×2250 | 2250×2600×2400 |
| Weight(kg) | 300 | 500 | 800 | 1000 | 1200 | 1300 | 1350 | 1400 | 1500 |
Hot-selling Equipments For Your Powder Processing Task
Chemicals Three Dimensional Mixer For Your Powder Processing Task:
Chemicals Three Dimensional Mixer are used for the homogeneous mixing of powder materials of different specific gravity and particle size. Wet-Dry and Wet-Wet mixtures can also be produced. Since the products are mixed in separate vessels of different sizes, the production process is hygienic and dust-free.
During the mixing process, the powder moves in a random direction from the centre of the tank to the end of the tank, while moving from top to bottom. With such a multi-dimensional mixing method, the mixer requires only short mixing times and relatively low power consumption.
1-Construction Material & Finish:
We are able to offer our mixers with contact part to be built in SS304, SS316L, whole machine to be built in SS304 and SS 316 etc. Standard of internal and external polishing finish can be adapted to the customer’s needs.
2-Advantages & Options:
2.1 Good uniformity of mixing work without dead space.
2.2 Total capacities ranging from 20 to 1000 litres.
2.3 Mixing in separate containers, no contamination or discharge, no additional cleaning.
2.4 Fully discharged, easy to clean
2.5 Safety cage to prevent human injury.
2.6 Time-saving, fast exchange of the barrel, due to simple and fast mounting of the container.
