Are you in search of an innovative solution for particle size reduction in the food processing industry? Look no further! We’re thrilled to introduce the YINDA YDWS series Cinnamon Pin Disc Mill Machine–a game-changer that promises to transform your processing operations.
What is the Cinnamon Pin Disc Mill Machine?
The YINDA YDWS series Cinnamon Pin Disc Mill Machine is a state-of-the-art apparatus designed to finely grind and reduce particles to achieve the desired particle size distribution. It employs a unique pin disc configuration that ensures efficient and consistent results across a variety of materials, making it a versatile solution for various industries.
The main structure of it are: the main milling part (pin disc blade), the connected pipe, the cyclone separator discharging port, the pulse dust-free collector and the centrifugal fan.
YINDA YDWS series Cinnamon Pin Disc Mill Machine
Working principle
When the material enters into the hopper of the milling part or a feed mechanism, the crushing process is beginning. Insider the milling chamber, there are a series of closely spaced pins or grinding elements mounted on a rotor or disc. These pins are typically blunt or semi-sharp, and they rotate at high speeds. The material is subjected to high-velocity impacts as it comes into contact with the pins. Then together with the action of the inner filter screen, the material become the target sized powder.
After the impact grinding, the resulting mixture of particles and air moves towards an outlet. We deign the cyclone separator for the discharging port to help quickly and high effectively get the final powder. And the dust will be collected by the dust free collector to improve the operate environment. Finally, all the steps ensures that the desired particle size distribution is achieved.

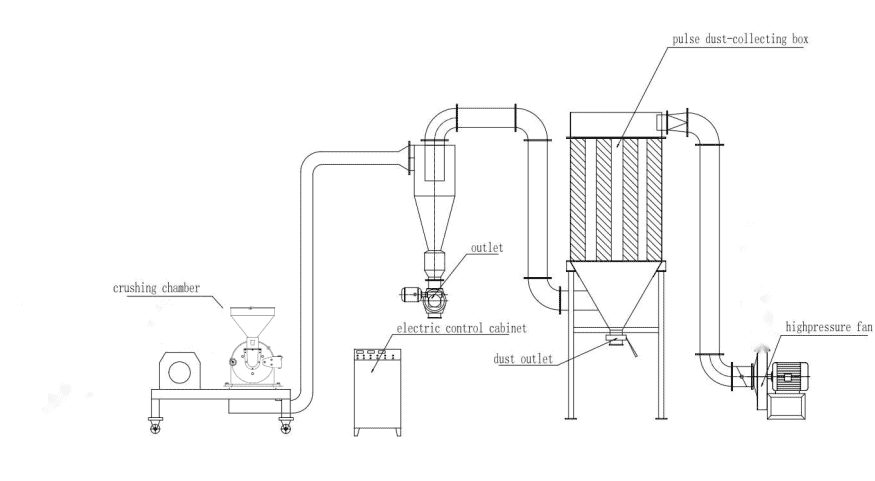

YINDA YDWS series pin disc mill machine diagram.
In order to adapt to the characteristics of different materials, YINDA has also developed a new design based on the original Pin disc. For example, air-cooled blade, combination of knife-blade and pin disc, and so on.

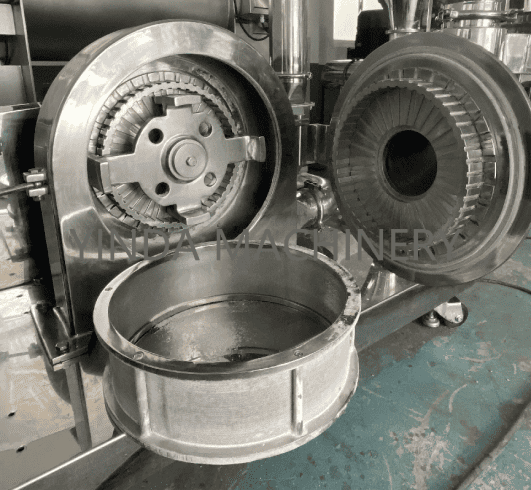

YINDA YDWS series pin disc mill machine blade
Option devices:
- Variable frequency drive (VFD) for speed regulationto help improve the powder yield and reduce the dust rate.
- Cooled Chiller to help cool down the temperature in the milling chamber to keep the hot-sensitive material taste.
- Vibrating sifter to connect with the outlet to get more uniform powder and reduce the impurities
- Different conveyor system: the belt conveyor, the Vacuum feeding machine, the screw conveyor.
- The Explosion-proof components.
Key Features and Benefits:
- Precision Engineering: YINDA YDWS series Cinnamon Pin Disc Mill machine design is backed by precision engineering, ensuring minimal heat generation during the grinding process. This feature is vital in preserving the integrity of heat-sensitive materials, such as spices and flavorings like cinnamon.
- Customizable Particle Size: Whether you require coarse particles for a granular product or ultra-fine particles for a powder, the YINDA Cinnamon Pin Disc Mill Machine allows easy adjustment of the particle size to meet your exact specifications.
- Enhanced Efficiency: Thanks to its innovative design, the machine offers high throughput rates while consuming less energy compared to traditional grinding methods. This not only reduces operational costs but also contributes to a more sustainable production process.
- Low Maintenance: YINDA Cinnamon Pin Disc Mill Machine robust construction and minimal wear parts translate to reduced maintenance requirements, minimizing downtime and ensuring consistent production.
- Versatility Across Industries: While the name suggests its application in the food industry, the Cinnamon Pin Disc Mill Machine’s capabilities extend to a wide range of industries, including pharmaceuticals, chemicals, and more.
- User-Friendly Interface: The YINDA Cinnamon Pin Disc Mill Machine features an intuitive interface that allows operators to monitor and control the grinding process with ease. This makes it suitable for both experienced professionals and those new to particle size reduction.
Applications:
- Food Industry: Achieve the perfect grind for spices, herbs, and flavorings like cinnamon, enhancing the quality and consistency of your products.
- Pharmaceuticals: Process active pharmaceutical ingredients (APIs) into uniform particle sizes for better drug formulation and efficacy.
- Chemicals: Reduce chemicals and pigments to precise particle sizes, ensuring improved dispersion and performance in various applications.
- Cosmetic: Crush lumpy materials to reduce agglomeration reaction
To learn more about the YINDA YDWS series Cinnamon Pin Disc Mill Machine and how it can revolutionize your processing operations, contact us today!
Tel(WhatsApp): +86 13914192807
Other Products We Can Help You With powder handling systems:
YINDA YDCS series coarse crusher
https://yindamachinery.com/coarse-crusher/

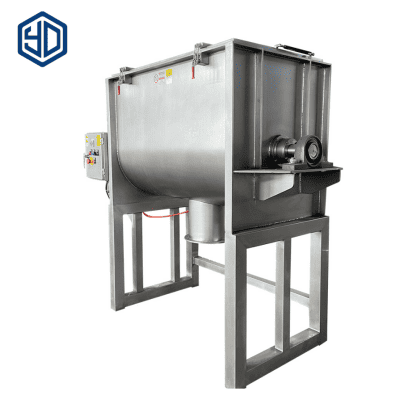

YINDA YDLH series ribbon blender machine
https://yindamachinery.com/ribbon-blender/

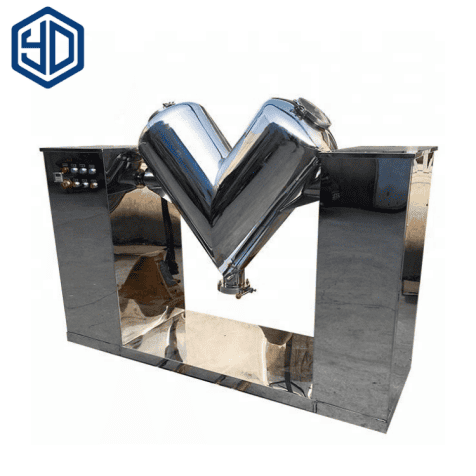

YINDA YDV series V cone mixer
https://yindamachinery.com/v-mixer/

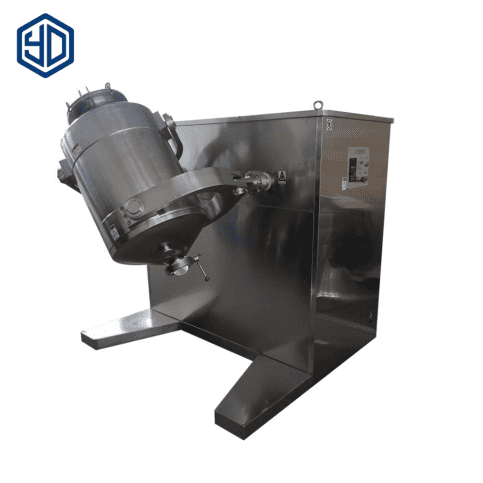

YINDA YDSW series 3D mixer
