YINDA YDLH series chemical Ribbon Blender

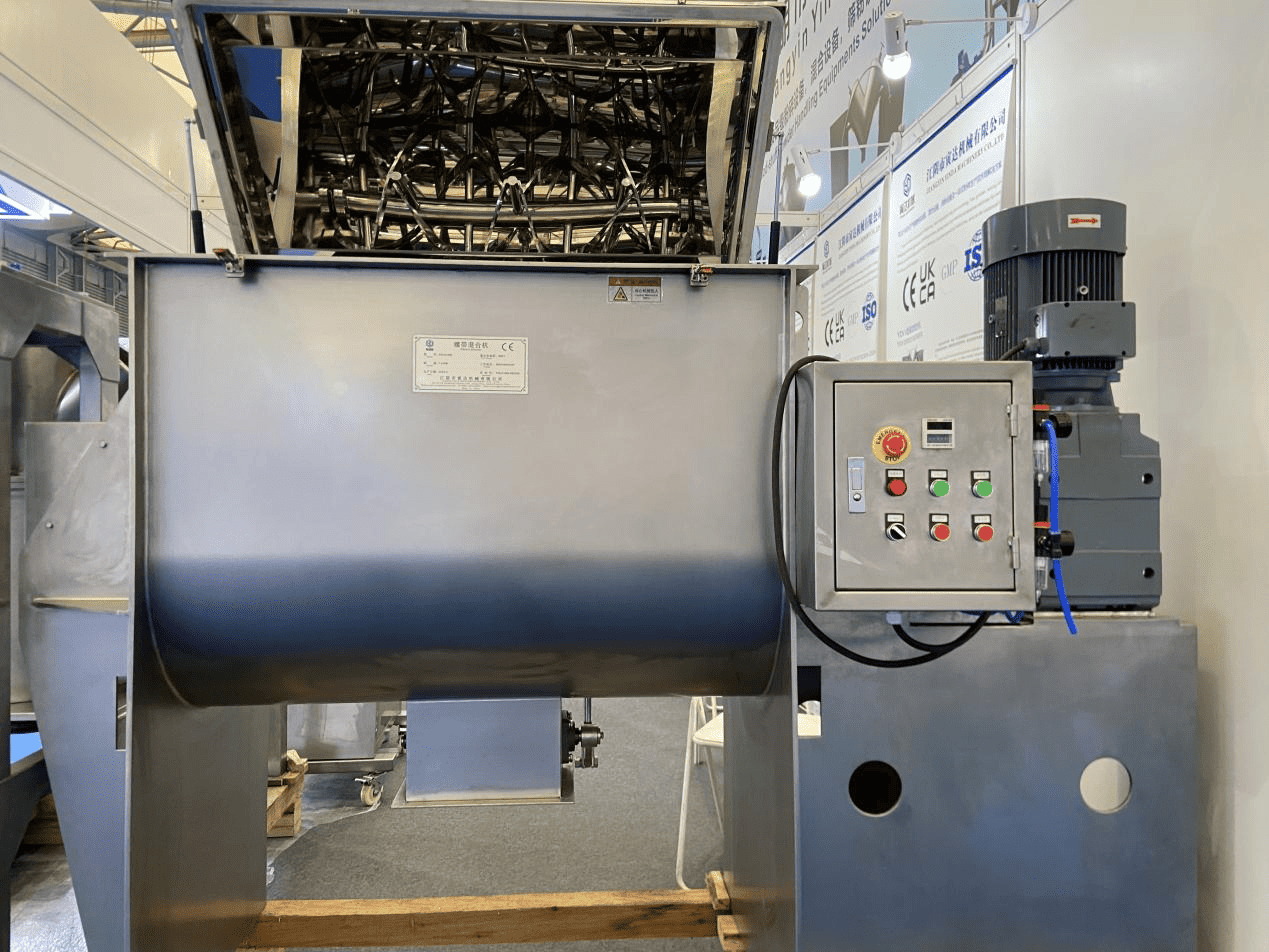

YINDA YDLH series chemical Ribbon Blender is a type of mixing equipment commonly used in various industries for blending dry or powdered materials. It is named after its design, which consists of a trough-shaped container with a double helical ribbon agitator inside. The other parts are the discharge port with a pneumatic valve, the drive system, the motor, the frame, and the electric control panel.

Here are some key features and characteristics of YINDA YDLH series chemical Ribbon Blender to help you know more about our machines quickly:

Material: The YINDA YDLH series chemical Ribbon Blenderis constructed using stainless steel grade 304, which is a popular choice for equipment in the food, pharmaceutical, and chemical industries due to its excellent corrosion resistance and hygienic properties. We also supply carbon steel and sus 316L to meet different material properties.

It’s worth noting that while stainless steel 304 is a commonly used material for ribbon blenders, other stainless steel grades or materials like stainless steel 316L can be used depending on the application’s requirements, especially when dealing with corrosive or specialized environments.

Trough Shape: The YINDA YDLH series chemical Ribbon Blenderhas a U-shaped trough or container that provides a spacious mixing chamber. The U-shape allows efficient mixing and prevents material accumulation in corners, ensuring uniform blending.

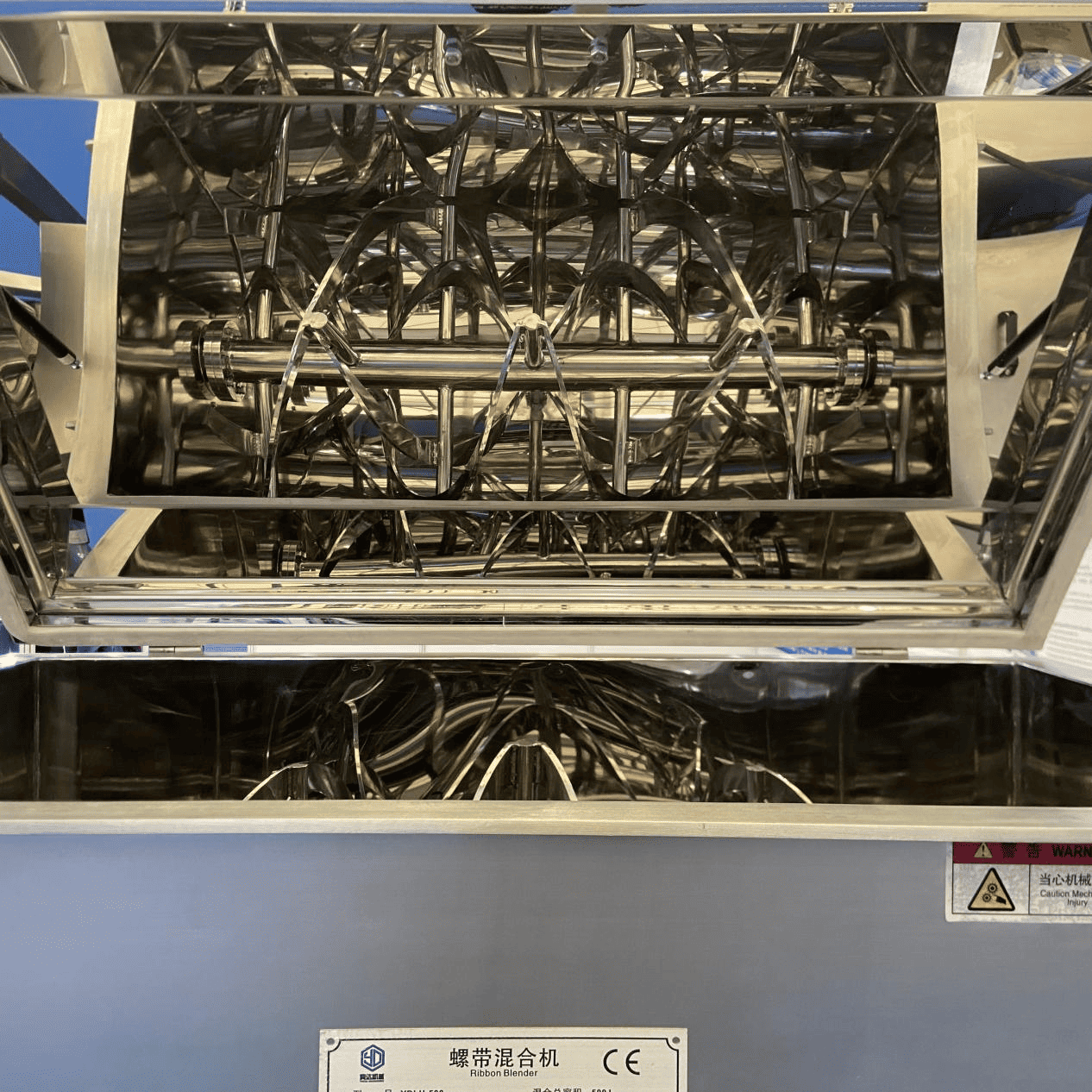

Ribbon Agitator: Inside the trough, there is a ribbon agitator consisting of two or more helical ribbons. The ribbons are welded to a central shaft and rotate in opposite directions. This design promotes thorough mixing and prevents material from forming dead spots or pockets.

Mixing Efficiency: The ribbon agitator continuously lifts and folds the material, creating a flowing effect. This action ensures efficient blending by moving the material from the center to the sides and back, resulting in homogeneity.

Versatility: YINDA YDLH series chemical Ribbon Blenderis versatile and can handle a wide range of dry materials, including powders, granules, and cohesive materials. They are used in industries such as food processing, pharmaceuticals, chemicals, plastics, and cosmetics.

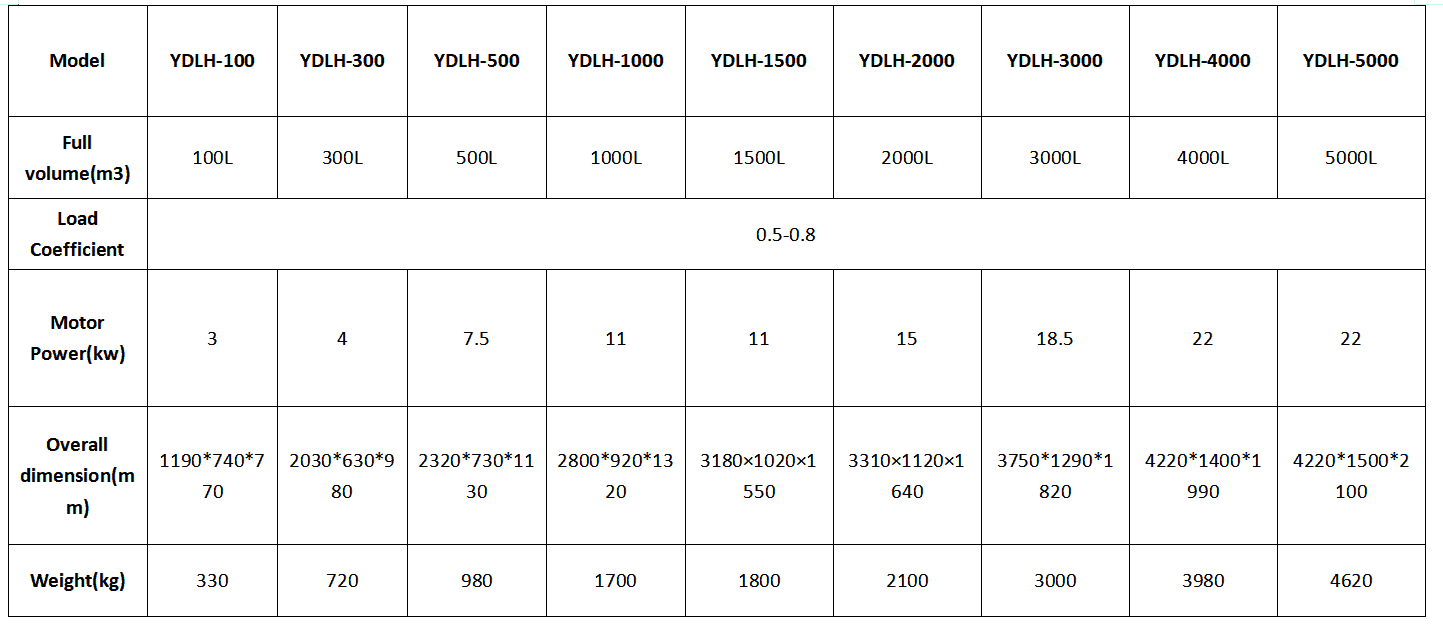

Capacity and Scale: YINDA YDLH series chemical Ribbon Blendercomes in various sizes, ranging from small scale units to large industrial blenders with capacities of several thousand liters. The choice of capacity depends on the specific requirements and production volumes of the application. Here is the machine type and technical data for your reference.

Mixing Timeand Speed: The mixing time varies depending on the material properties, desired blending quality, and batch size. In general, YINDA YDLH series chemical Ribbon Blender is known for its relatively short mixing times, making tit efficient for large-scale production. And based on the rich experience and market feedback, the mixing speed is pre-set and adjusted at a perfect and balance value to fit the different mixing capacities.

Safety and Hygiene: The Stainless steel 304 is easy to clean and maintain, ensuring compliance with sanitary and safety standards. The smooth, non-porous surface of the blender prevents material build-up and allows for thorough cleaning between batches.

Optional Features: Additional features can be included based on specific requirements, such as jacketed troughs for heating or cooling, discharge valves for convenient material discharge, protection system, and control systems for automation.

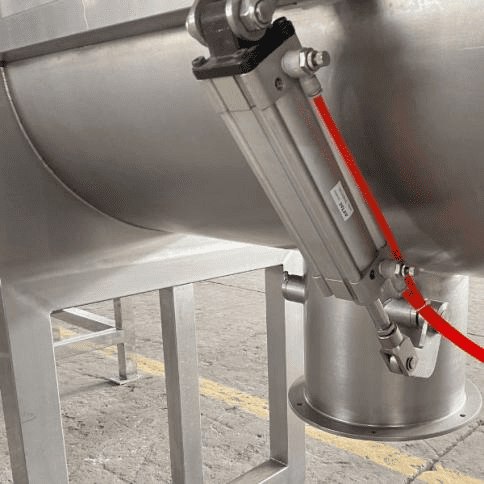

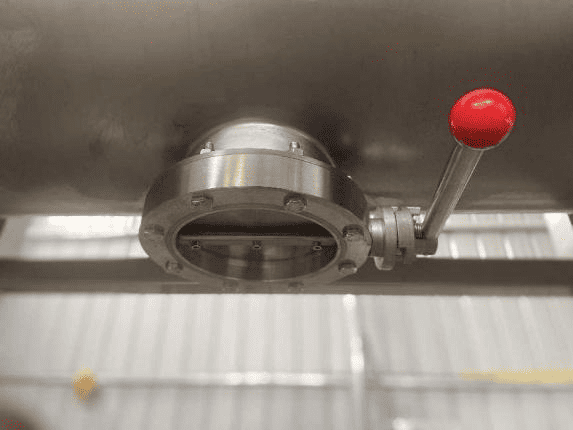

Such as different discharge valves, for the normal machine type, the discharge port adopts the automatic pneumatic valve to reduce the manual operation to avoid pollution. Besides the automatic pneumatic valve, we also supply a hygiene manual butterfly valve which is cheaper but also can meet the hygiene standard.

Overall, YINDA YDLH series chemical Ribbon Blender provides efficient and reliable blending of dry materials, ensuring consistent quality in various industrial processes. So if you want to know more details about it, welcome to contact us via the following ways:
