Chilli Powder Making Machine is composed of a feeding part, crushing system, cyclone separator, pulse dust collector, and electric control cabinet. The mill part combines coarse crusher, middle fine mill, and fine mill together, which means it can make fine powder directly from big raw material, very effective.
This machine is suitable for pharmaceutical, food, chemical, and other industry. It is mainly crushing the spices and oily materials in which oil content reaches 10-15%, such as spices, chili, pepper, herbs, various fibrous, and oily materials with uniform fineness.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Introduction
- Specifications
| Model | YDDF-350 | YDDF-450 | YDDF-550 | YDDF-650 | YDDF-750 |
| Capacity（kg/h) | 100-200 | 300-500 | 400-800 | 600-900 | 800-1300 |
| Input size(cm) | 5-15cm | 5-15cm | 5-15cm | 5-15cm | 5-15cm |
| Fineness size(mesh) | 60-120 | 60-120 | 60-120 | 60-120 | 60-120 |
| Total powder(kw) | 23.5 | 46 | 56.85 | 64.85 | 78.75 |
| Dimension(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3300 | 9800*2500*3540 |
Hot-selling Equipments For Your Powder Processing Task
Chilli Powder Making Machine For Powder Handling Task:
It has the properties of coarse crushing, medium crushing and fine crushing at the same time, no sieve, uniform particle size, and so on. It is not limited by the viscosity, softness, and fiber of the material, and can play a better crushing effect on many materials.
Highligh the Benefits of Chilli Powder Making Machine:
●It features a big capacity with 100-3000kg/hr fine powder, and lower power consumption.
●No need a sieve or screen mesh in the mill chamber, changing powder size by changing speed.
●The main grinding chamber is made of high-speed impact resistant tool steel and is fully heat treated. The service life is 2-3 times longer than the same type of products.
●The temperature in the mill chamber will hardly rise because there is no sieve or screen in it. So it is very suitable for grinding some heat-sensitive materials.
●Equipped with a cyclone separator and a collector, so there is no powder flying during production. The dust collection bag can effectively collect the fine powder in the air current so as to meet the requirements for cleanness and environment protection in a waste gas discharge.
Detail images for Chilli Powder Making Machine:

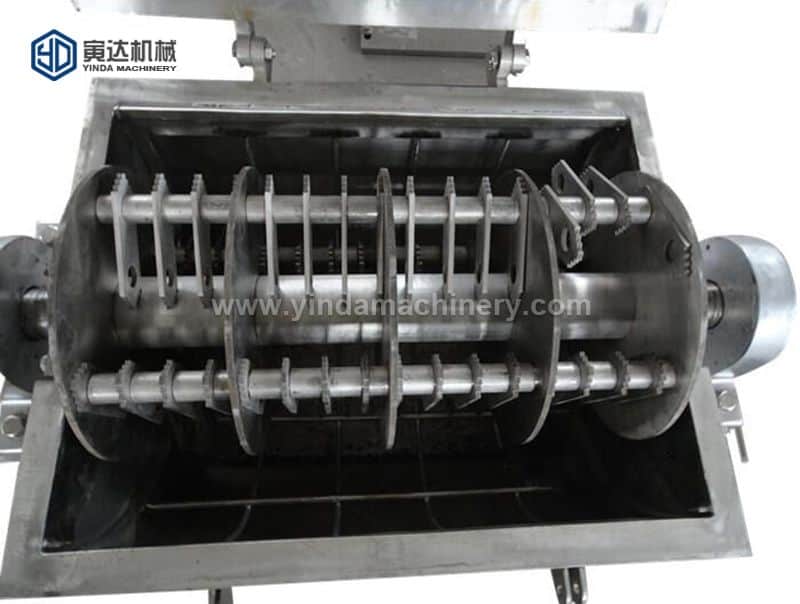

Mill Structure of Chilli Powder Making Machine:
●The main grinding chamber is made of high-speed impact resistant tool steel and is fully heat treated. The service life is 2-3 times longer than the same type of products.
●The mill part combines coarse crusher, middle fine milling area, and fine milling area( it combines 3-stage grinding at one time) together, which means it can make fine powder directly from big raw material, very effective.

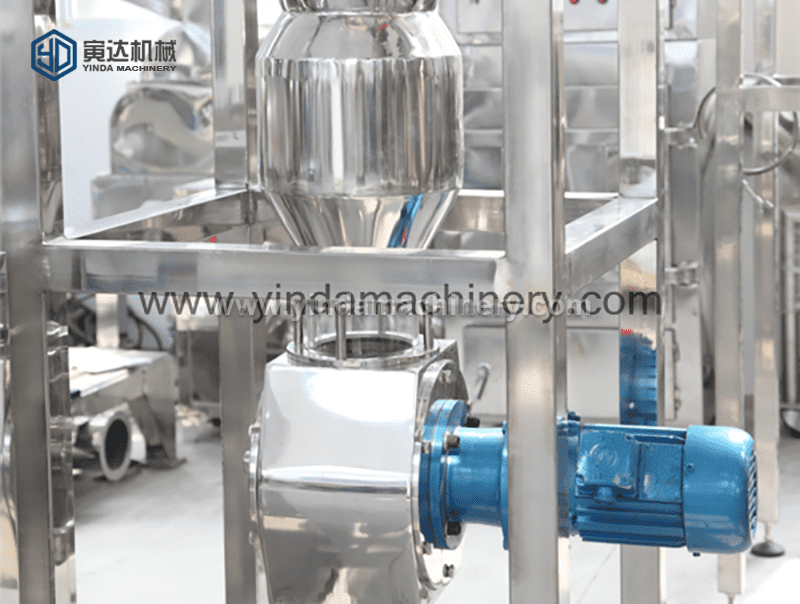

Cyclone Discharge Valve:
●Cyclone can separate dust from powder(granules).
●The rotary valve makes powder discharge speed even.
●The rotary valve is also made of stainless steel and based on the GMP standard.
●Quick-detachable Construction to Make quick and convenient for clean and installation.
Pulse dust collector:
●Dust is collected inside the dust collecting box.
●Inside the box, there are many dust collecting bags, the number of dust boxes is precisely calculated according to the filter area. and the bag frames are also made of stainless steel and can be disassembled easily.
●With pulse-jet cleaning, dust can be filtered and collected very conveniently.
Eu Brand components guarantee quality performance and minimize broken-down time.
