Buyer Guider for Sugar Mill Machine

Buyer Guider for sugar mill machine

As we all know, the sugar mill machine is a must-have for any food industry, baking shop, or restaurant. It is a great way to quickly and easily grind sugar into a fine powder, perfect for baking and making related products.

YINDA sugar mill machine is designed to be versatile and can be used to make a wide variety of products, the common materials are refined sugar, brown sugar, icing sugar, etc. And according to different powder size requests, it is also known as the YDWS series sugar mill and the YDWF series superfine sugar ACM mill machine, etc.

YINDA YDWS series Sugar Pin Mill, and the YDWF series sugar ACM Mill are all essential components in the production of refined sugar powder making. Each of these machines plays a vital role in the production process, from grinding the raw sugar into a more refined product to packaging the finished product for consumers. The sugar powder-making machine is easy to operate and requires maintenance, and according to the market request, we designed three effective solutions for customers at different stages to achieve the maximum ROI.

Small inputs for startups: $2000-$5000

This small-scale YINDA YDWS series single Sugar Pin Mill grinds the raw sugar which is almost granulated or crystal into a fine powder, the fine powder fineness is around 20-140 mesh (109-830 microns). The basic structure consists of the hopper, the milling chamber, the discharge port, and the electric control panel.

As the material through the hopper into the milling chamber, It works by crushing the sugar crystals between the rotating blade and the fixed gear ring, which grinds the sugar into a powder, then matches a series of screens or sieves which are installed around the rotating blade to get different sizes of fine powder. The movement of the milling chamber also creates a centrifugal force, which helps to draw the particles through the mill chamber to the discharge port.

Considering the YINDA YDWS series single sugar pin mill is suitable for the small capacity and footprint, it has a flexible structure for customized needs. Here are two machine designs for options: The Horizontal YDWS series single sugar mill and the Vertical YDWS series single sugar mill.

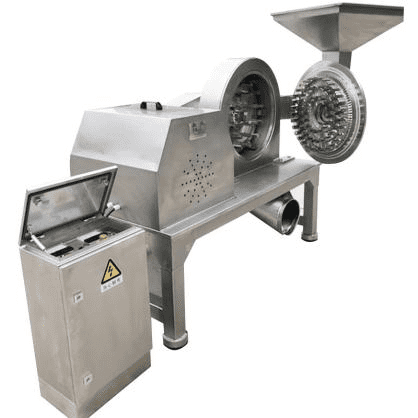

YDWS series vertical Single Sugar Mill

YDWS series horizontal singer sugar mill

High dust-free requirement and middle investment: $6000-$20000

The YINDA YDWS series split type pin mill is also known as the split sugar powder making machine, the brown Sugar grinding machine, etc. The YDWS series split sugar pin mill machine is a revolutionary piece of equipment that provides an efficient and effective way to reduce the size of raw and processed sugar crystals. This machine is capable of milling, grinding, and pulverizing a wide range of materials, including sugar, grains, spices, and other ingredients.

The YINDA YDWS series split sugar pin mill consists of four components: the main milling part, the cyclone separator discharging port, the pulse dust-free collector, and the electric control box.

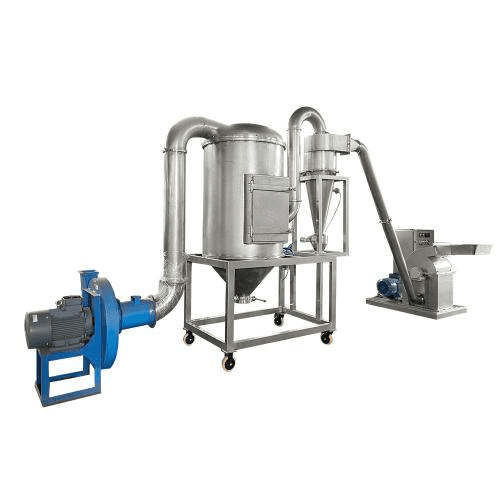

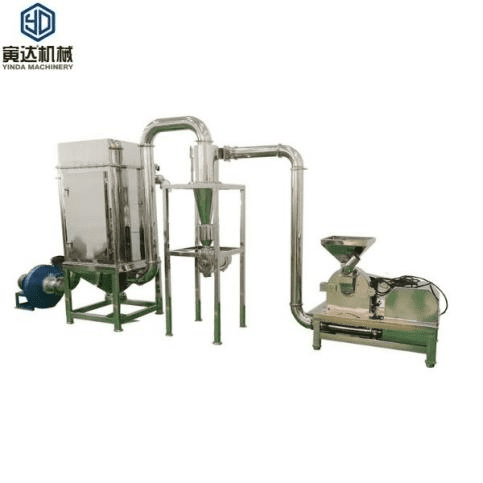

YINDA YDWS series split sugar mill machine

In the main milling part, the rotating disc is made up of a series of pins or blades that fit into the fixed gear ring. As the disc rotates, the pins or blades move in a rotating motion, creating a shearing and an impact action that reduces the size of the sugar particles. From here, the working principle of it is similar to the small-scale pin mill, the particles are further reduced in size and then moved out of the mill for further processing. But it is equipped with a cyclone separator and a dust-free collector to handle the higher environmental requirement and the dust-free requests. Based on the cyclone separator, the output speed is faster and the powder yield is up to 99%.

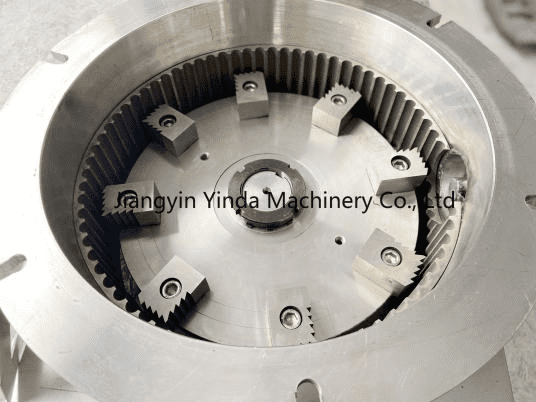

YINDA YDWS series split sugar pin mill the milling part.

YINDA YDWS split sugar pin mill cyclone separator

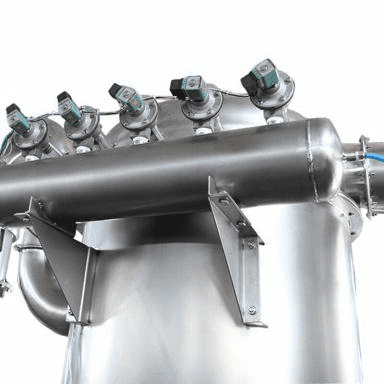

YINDA YDWS split sugar pin mill pulse dust-free collector

The split sugar pin mill is a reliable and cost-effective way to reduce the size of sugar crystals. It is suitable for both large-scale and small-scale operations, and it is also easy to use and maintain, as the parts can be easily replaced when necessary. Furthermore, it is designed to operate at a low temperature with the water-cooling jacket and the special blade which ensures that the sugar crystals remain intact and are not damaged during the milling process.

In conclusion, although the investment is more than the small-scale pin mill the split sugar pin mill is an essential tool for manufacturers looking to reduce their production costs and improve the environment friendly while still producing a high-quality product. It is reliable, cost-effective, and easy to use and maintain, making it a popular choice for industrial applications.

YINDA YDWS series sugar mill machine 20-140 mesh fine sugar powder

High investment and high return: The superfine powder requirement (140-400 mesh)

YINDA YDWF series sugar ACM Mill Machine is an advanced machine for milling and grinding materials. It has been designed to be a versatile and efficient ultra-fine sugar powder machine for both industrial and commercial applications. It is a highly efficient machine for producing high-quality fine sugar powder with precision and accuracy. Its whole name is also known as the air classifier mill machine, it is a type of industrial grinding equipment that utilizes a combination of size reduction and air classification processes to reliably grind and classify a wide array of materials. It is designed to produce a uniform particle size distribution, which is essential for certain manufacturing processes.

YINDA YDWF series sugar ACM Mill machine also has four main components: the main milling chamber, the cyclone separator for discharging port, the dust-free collector, and the electric control box. The YDWF series sugar air classifier mill machine is composed of a different grinding chamber, which contains a rotor and an impeller. The impeller rotates at high speed and drives the material to be ground through the grinding chamber. As the material passes through the grinding chamber, the impeller and rotor create a vortex that draws the material into the air stream. This air stream classifies the material into different particle sizes, which are then collected in a cyclone separator.

YINDA YDWF series sugar acm mill rotor and the impeller

YINDA YDWF series sugar air classifier mill machine offers a variety of features, including a simple design, easy installation, and low-maintenance operation. Additionally, the air classifier mill machine is highly customizable and can be tailored to meet the specific needs of any industrial process. The icing sugar ACM Mill machine is capable of grinding a variety of materials, including minerals, food, pharmaceuticals, and chemicals. With its wide range of features and benefits, the air classifier mill machine is a must-have for any industrial process.

YINDA YDWF series sugar ACM mill 320 mesh sugar powder

These machines are essential components in the production of refined sugar. They play a vital role in the process, from grinding the raw sugar into a more refined product for consumers. They are used from small-scale sugar production plants to large-scale production lines, depending on the size of the plant and the investment.

With the above brief introduction, have you found the right solution for you? Or do you want to know more details about the sugar mill machine? Come on to contact us to get a free quote:
