How to chose turmeric hammer mill grinder?

Contents

How to chose turmeric hammer mill grinder?
1. What is turmeric?
2. What is the YINDA YDGS series hammer mill grinder?
YINDA YDGS series hammer mill grinder
YINDA YDGS series turmeric hammer mill grinder advantage.

1. What is turmeric?

Turmeric is a yellow-orange fabric spice commonly used in Indian and Asian cuisine. It has a strong, earthy taste and is often used as a coloring agent for dishes such as curries. It is also known for its medicinal properties and has been used for centuries to treat various health conditions.

After harvesting the turmeric, there are some steps to get the turmeric powder:

Cleaning: After harvesting, the turmeric rhizomes are washed and inspected for contaminants.
Grinding: The washed and cleaned turmeric rhizomes are then ground into a fine powder. This can be done using the YINDA YDGS series hammer mill grinder. This is the machine we want to introduce to you today.
Sieving: After grinding, the powder is sieved to remove any impurities and to ensure a consistent size for the finished product. Here is the related product YDGZ series vibrating screen: https://yindamachinery.com/vibro-sifter/
Drying: The sieved powder is then dried using hot air or in a dehydrator. This helps to reduce the moisture content and keeps the powder from clumping. The drying step also can be added before the grinding to get the dried turmeric which is more effective to get the fine turmeric powder. Here is the related product YINDA YDHF series hot air tray drying oven: https://yindamachinery.com/tray-dryer/
Packaging: Finally, the dried powder is packaged into airtight containers and stored in a cool, dry place.

2. What is the YINDA YDGS series hammer mill grinder?

YINDA YDGS series hammer mill grinder consists of the main milling chamber, the cyclone separator discharging port, the dust-free collector, and the electric control box. YINDA YDGS series hammer mill is a machine used to grind and crush materials into 40-100 mesh powder. The hopper connects with the milling chamber to absorb the turmeric fast, and the design of the milling chamber structure can hold a large capacity, especially for more than 100kg/h requests.

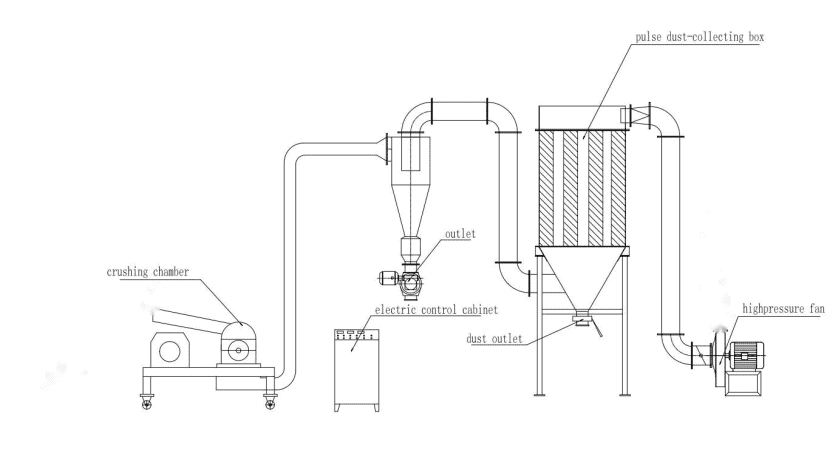

YINDA YDGS series hammer mill grinder design drawing

YINDA YDGS series turmeric hammer mill is equipped with a powerful motor that rotates a series of fixed knives and rotating knives at a high speed to break the turmeric into tiny powders, which are then expelled through a regular size sieve at the bottom of the milling chamber. After the milling part, the qualified turmeric powder enters the discharge port under the action of the cyclone separator, over size powder or dust will be absorbed into the dust-free collector for other recycling usages.

YINDA YDGS series turmeric hammer mill grinder is not only suitable for turmeric but also used for a variety of applications, including grinding grains, nuts, herbs, teas, spices, and leaves. Especially for the fiber-rich turmeric, it is the best suitable grinder machine to get the fine powder in a short time.

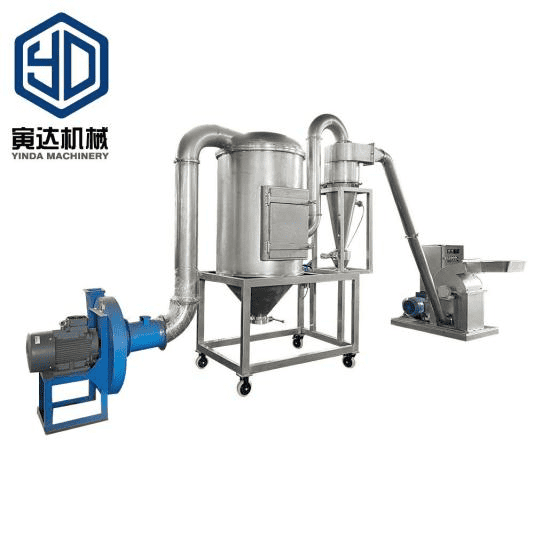

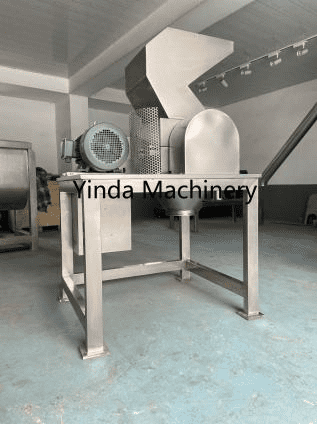

YINDA YDGS series hammer mill grinder

YINDA YDGS series turmeric hammer mill grinder advantage.

YINDA YDGS series hammer mill grinder is also in an indispensable position in powder processing. In order to ensure the safety and hygiene of materials, we generally use food-grade stainless steel to manufacture the equipment. The sturdy and durable characteristics are also what make it able to bring benefits to customers for a long time.

YINDA YDGS series hammer mill grinder machine is relatively easy to maintain. The hammers should be checked regularly for wear and tear, and the sieve should be replaced if it is damaged. The motor should also be checked regularly for proper operation. The machine should be serviced and cleaned regularly to ensure that it is operating at optimum performance

The design of the cutter group in the crushing chamber is conducive to 10%-20% oily materials or fibrous materials, avoiding block and oil accumulation.
Crushing high capacity range from 100-1000kg/h in a short time which saves human labor and time.
uniform powder size distribution, keeping the material natural flavor and properties.
its ease of manufacture allows easier local construction. The split design can make the equipment better adapt to different factory layouts, and easy to install, saving labor costs
simple structure, firmness, stable operation, and good pulverization effect.
Fully crushed without waste

YINDA YDGS series turmeric hammer mill grinder powder size

YINDA YDGS series hammer mill technical date for your reference.

Model	YDGS-400	YDGS-600	YDGS-800	YDGS-1000
Production capacity （kg/hr)	80-300	300-500	400-1000	800-1500
Feeding size （mm）	<20mm	<20mm	<20mm	<20mm
Finished size (mesh)	20-100	20-100	20-100	20-100
Grinding motor (kw)	22	37	45	55
Blower motor (kw)	11	15	18.5	22
Feeding motor (kw)	0.25	0.25	0.25	0.25
Discharge motor (kw)	0.75	0.75	1.1	1.1
Dimension (mm)	540013002700	680013002700	780018003200	880020003300

Hammer mill Grinder VS Pin mill

The main difference between the YINDA YDGS series hammer mill grinder and the YINDA YDWS series pin mill grinder is the type of grinding technical used. They adopt different milling chambers to achieve uniform powder results. YINDA YDGS series hammer mill grinder uses a set of swinging hammers to grind the material into a fine powder, whereas a pin mill grinder uses a set of stationary pins to grind the material into a fine powder.

And YINDA YDGS series Hammer mill grinders are typically used for grinding tough, fibrous materials such as spice, herbs, and teas, while YDGS YDWS series pin mill grinders are usually used for grinding solid, brittle, crystal materials such as grains, sugar, salt.

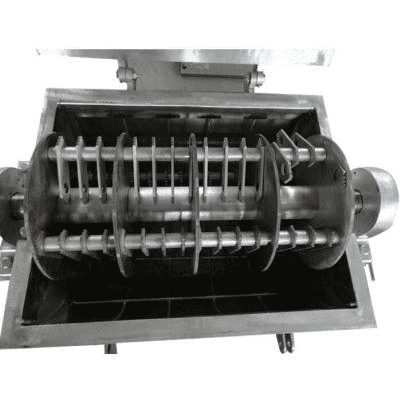

YINDA YDGS series hammer mill grinder milling chamber

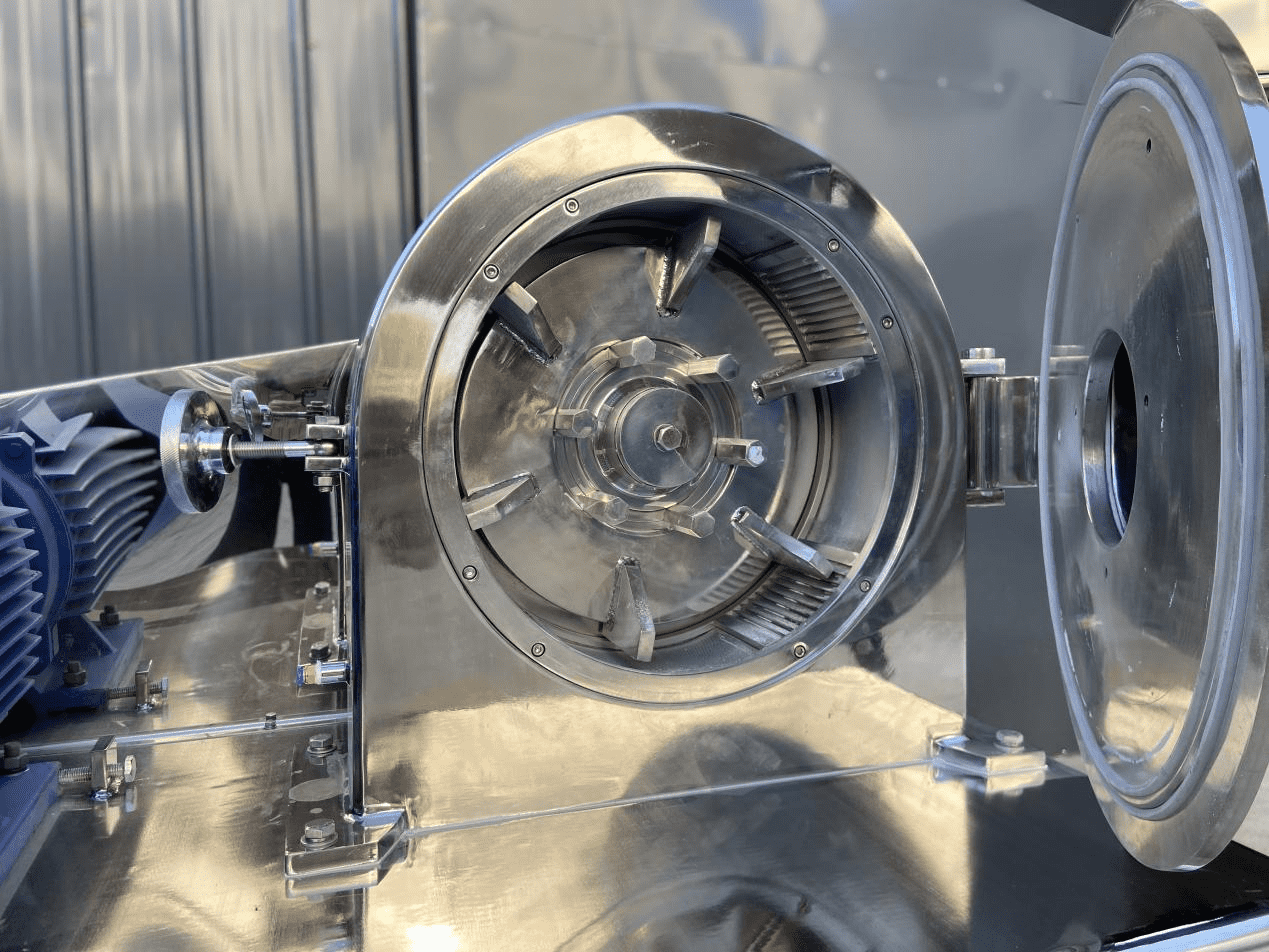

YINDA YDGS series pin mill grinder milling chamber

We hope the introduction of the YINDA YDGS series turmeric hammer mill will help you know more about it, if you want to know more configuration, specifications, and prices about it, welcome to contact us to get a free quote.
