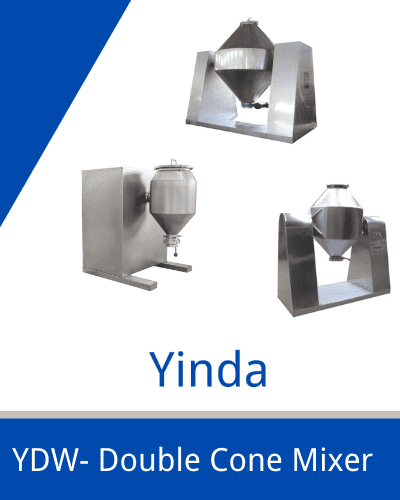

Spices double cone blender is designed according to GMP standard and wholly made of stainless steel.
It is suitable for the mixing of dry powder particles with good fluidity in the pharmaceutical and other industries.
It can shorten the mixing period, lower energy consumption, and guarantee product quality, which has played an important role in increasing production efficiency.
- Price Term: FOB/CIF/EXW
- Package: Wooden case or according to customer request
- Delivery Time: 25-35 working days
- Transports: LCL/FCL
- Shipment Port: Shanghai Port
- Origin Of Place: Wuxi City
- Warranty: 12 Months
- Machine Video
- Specifications
| Model | YDW-180 | YDW-300 | YDW-500 | YDW-1000 | YDW-1500 | YDW-2000 |
| Total volume(m3) | 180 | 300 | 500 | 1000 | 1500 | 2000 |
| Production Capacity(kg/time) | 40 | 70 | 120 | 250 | 360 | 450 |
| Mixing time(min) | 4-8 | 4-8 | 6-10 | 6-10 | 12-18 | 12-18 |
| Barrel speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 |
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Model of auxiliary vacuum pump | Manual feeding | Manual feeding | WL50 | WL50 | WL50 | WL50 |
| Cross rotation height (mm) | 1870 | 1870 | 2450 | 2940 | 2940 | 3670 |
| Overall dimension（mm） | 2110*600*1675 | 2000×750×1650 | 2380×1100×1950 | 2900×1300×2500 | 3390×1350×2900 | 3700×1600×3100 |
| Weight(kg) | 290 | 380 | 550 | 700 | 900 | 1500 |
Hot-selling Equipments For Your Powder Processing Task
Highlight Spices Double Cone Blender for Your Powder Handling Task:
Benefits of spices double cone blender:
● The cylinder adopts the arc angle of flow forming type, weld seam can be burnished and polished; there isn’t any dead angle and raw material accumulation, easy to clean.
● Mirror polished for both interior and exterior.
● Manually-operated butterfly discharge valve.
● Heating or cooling jacket is optional, if temperature control is required, spray nozzles for liquid introduction,
● Intensifier bars can be equipped for accumulation, No dead angle.
● Safety railings can be equipped for protection.
● Adjustable rotating speed, the digital display is optional, auto-positioning stop function is optional when the machine stops, the discharge parts are right towards the ground automatically, no need to use point-stop (jog) manually.
Detailed Images Of Spices Double Cone Blender:
Inner Agitator:
●304 SUS steel material, mirror polished
●uniform mixing and shorter mixing times via positive agitation technology.
Operation Panel:
●button control
●Limit switch
●automatically mixing time setting
Manual Butterfly Valve for discharge:
●prolong service life
●improve mixed uniformity
