Cost-effective industrial ribbon blender Factory
As a professional Industrial Ribbon Blender manufacturer and factory in China, we manufacture and supply all types of Industrial Ribbon Blender with qualitative grades of raw materials and is designed in accordance with various quality standards.
Get in touch with us and let us know how we can assist on Industrial Ribbon Blender, we are always here to help you.
Yinda: Your Reliable Industrial Ribbon Blender Supplier In China
1)if you project on powder processing needs to import industrial ribbon blender, then Yinda will be your best choice to manufacture your industrial ribbon blender orders.
2)Yinda is one of the leading industrial ribbon blender suppliers and all of our industrial ribbon blender can meet ISO/CE/GMP standards, and we will provide a competitive price based on your project.
3)Yinda will give you the best industrial ribbon blender solution based on your project’s requirements with our professional technical team, and know more about powder and particle processing that we enjoy sharing with customers.
- Specifications
- Features
- Package And Shipment
- Ultimate service
- Industrial Applications
| Model | YDLH-100 | YDLH-200 |
YDLH-500 |
YDLH-1000 | YDLH-1500 | YDLH-2000 |
| Full volume（m3） | 0.1m3/100L | 0.2m3/200L | 0.5m3/500L | 1m3/1000L | 1.5m3/1500L | 2m3/2000L |
| Working volume(L) | 60 | 120 | 300 | 800 | 1200 | 1600 |
| Mixing speed(rpm) | 53 | 53 | 53 | 42 | 42 | 42 |
| Mixing motor(kw) | 3 | 4 | 7.5 | 11 | 11 | 15 |
| Overall dimension(mm) | 1190*740*770 | 1550*1005*935 | 1972*1142*1300 | 2340*1437*1500 | 3180×1020×1550 | 3310×1120×1640 |
| Weight(kg) | 330 | 720 | 980 | 1700 | 1800 | 2100 |
1 – The maximum filling factor of a industrial ribbon blender is usually between 0.6 and 0.7 ( Don’t forget that a industrial ribbon blender should not be filled with more than 80% of its total volume).
2- U-shaped container with flat lid section at the top and diverter valve at the bottom to minimise residue in the tank after discharge, reducing material waste and cleaning time.
3- One-piece welded construction with reinforced end plates makes the mixer very sturdy.
4-Feeding through a hopper mounted on top of the mixer, via a vacuum conveyor or screw feeder.
Hot-selling Equipments For Your Powder Processing
Industrial Ribbon Blender – The Full-Form FAQ Guide
Are you not sure about buying an industrial ribbon blender for your business?Can’t you decide if you need a ribbon blender or a double cone blender?
Worry not, because, in this guide, well be giving you the complete details about industrial ribbon blenders! For this guide, you’ll not only learn what an industrial ribbon blender is, we will also walk you through the steps on how you can find the best of the best in the market today!
So, without any further delays, let’s jump right into it!
What is an Industrial Ribbon Blender?

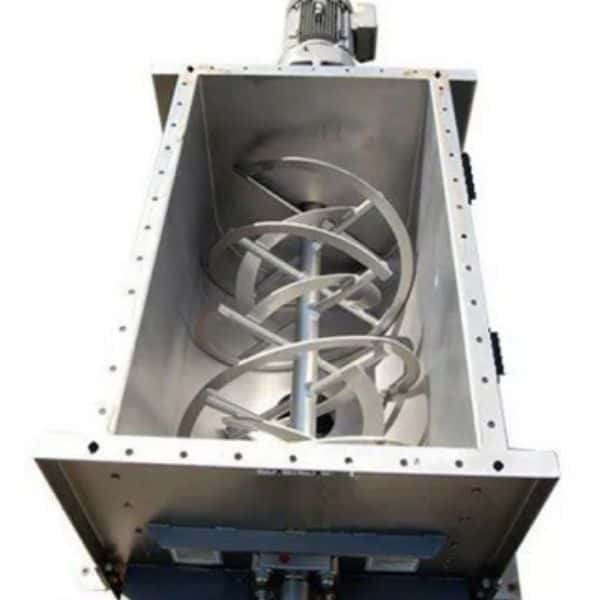

Figure 1 – Image of what an industrial ribbon blender or mixer looks like from top-view
An industrial ribbon blender is a type of machine in the powder handling/powder processing industry used for blending and mixing.
Across the industry, industrial ribbon blenders are identified to be one of the most cost-effective, the most versatile, and the most common types of blenders and mixers for the processing of dry solids and dry powders.
But, do you know the reason why it’s called an industrial ribbon blender?
What is the Shape of an Industrial Ribbon Blender?
Figure 2 – An industrial ribbon blender with powders and particles being mixed and blended
Just because it’s known and identified as an industrial ribbon blender, doesn’t mean that it’s shaped as a ribbon.
The shape of the vessel of the machine is usually a deep trough that has “ribbon-like” blades inside it. These helical blades are the ones responsible for the shearing and the tearing of the particles and the powders, which allow for better and more effective mixing and blending.
Can You Use Ribbon Blenders For Powder Mixing?
Figure 3 – You’ll find industrial ribbon blenders an effective solution for dry powder mixing
Yes! As a matter of fact, that’s what their main purpose is! Industrial ribbon blenders are machines and equipment that you exclusively use for the mixing and the blending of dry materials, particularly dry powders!
Akin to other types and kinds of powder mixing and blending machines, industrial ribbon blenders are reliable equipment that you can treat as primary components of your powder processing and powder handling.
What is the Mechanism of an Industrial Ribbon Blender?
Figure 4 – An industrial ribbon blender and how it works and functions
Industrial ribbon blenders are known and deemed to be one of the more special types of blenders due to the fact that they utilize and incorporate two (2) different mechanisms and principles: (1) convection and (2) diffusion.
To let you know even further, convection is the process or the procedure of mixing when the solid particles and materials are turned along the horizontal axis.
Diffusion mixing, on the other hand, is the blending or mixing procedure when the particles are moved in dependent to its surrounding particles.
Ribbon Blender Specifications You Need to Know About
Figure 5 – An inside of what a ribbon blender looks like
Before deciding on the industrial ribbon blender that you’ll be purchasing, it is imperative that you’re aware of the various specifications and technical parameters of it.
While you’ll be able to find many different specifications, the top ones that you want to learn and know more about include:
Volume
In case you weren’t aware, the volume and the maximum capacity of industrial ribbon blenders aren’t the same. The volume of an industrial ribbon blender refers to the amount that the machine can hold and process – in total.
Maximum Capacity
Maximum capacity, on the other hand, is the total weight or capacity of the particles and powders that you can work with.
Don’t be confused in identifying which is which!
Rotation Speed
The rotation speed refers to the time in which the ribbon blender’s agitators can rotate. Unlike tumbling machines, you can identify the rotational speed all according to the speed of the blades inside the trough.
Power
Power is the specification that refers to the performance of the machine in its electrical sense. Voltage is different, because it’s the requirement of the machine in order to work.
These are the top specifications and parameters that you need to be aware of when it comes to choosing industrial ribbon blenders.
Horizontal Ribbon Blender vs. Vertical Ribbon Blender
Many people get caught in the dilemma between choosing a vertical ribbon blender and a horizontal ribbon blender.
Figure 6 – A vertical ribbon blender
But, is there really a difference between them?
Here’s a quick comparison of these two (2) types of industrial ribbon blenders.
| Horizontal Industrial Ribbon Blender | Vertical Industrial Ribbon Blender |
| The efficiency and the effectiveness varies slightly, depending on the type (continuous ribbon mixers or non-continuous ribbon mixers). | Not the best if you’re looking for uniform sizes and dimensions of powders and particles. |
| Easy and simple to clean compared to vertical industrial ribbon blenders. | Slightly difficult to clean compared to horizontal ribbon blenders. |
| The materials and powders aren’t forced into the machine. | The materials and powders fall into the machine because of gravity. They’re loaded from the top. |
| Mixing can happen within a large timeframe of about 15 minutes. | The blending or mixing can happen within 10 to 12 minutes, depending on the powders that are to be blended. |
If you’re part of the demographic that thought of these two (2) machines as similar, they’re not! Yes, they’re the same in a sense that they’re both ribbon blenders, however, there are certain distinctions that make them two (2) separate devices for the processing of your powders and materials.
Ribbon Blender Price
Don’t confuse yourself – there’s actually not a singular type of price or cost for ribbon blenders. As a matter of fact, how much it’ll cost will vary widely and will depend on a few factors, including the manufacturer that designed and produced it, the overall load capacity, features and functionality, and many more!
To give you a rough estimate, small industrial ribbon blenders can cost at an average of $1,800 to $3,000. Big and large machines and equipment, on the other hand, could cost at an average of $10,000 to $20,000.
Are Industrial Ribbon Blenders Static Mixers/Blenders?
Before determining what specific type of machine they are, it is imperative to know and understand what static blenders or mixers are.
From the term, static mixers or blenders are equipment that are stationary – they’re static, meaning, they’re not moving.
As we know, industrial ribbon blenders have helical blades or agitators inside the machines, they’re the ones that perform the mixing. Compared to dynamic blenders and mixers (tumbling blenders), industrial ribbon blenders are stationary.
Are Small Ribbon Blenders Effective?
Yes, of course! They’re effective in a sense that you will be able to utilize them efficiently and effectively for small and minor mixing and blending processes.

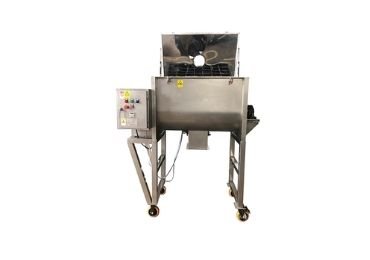

Figure 8 – A small industrial ribbon blender
But, don’t expect them to be that effective if you plan on mixing and blending large volumes and categories of powders and particles. They’re small, and therefore, they’ll only be efficient and effective if you use them for minor procedures and processes.
Where Can You Find the Best Industrial Ribbon Blenders?
It’s a known fact that American and European manufacturing companies certainly make a difference in the world of manufacturing.
What you didn’t know, though, is that the vast majority of these manufacturing companies source out and get their raw materials from Chinese powder handling machine suppliers!
Yes, you read that right, either they purchase it from China and assemble it there, or they have the company assemble it already!
So, it’s not true that Chinese industrial ribbon blenders are rip-offs!
Which Chinese Industrial Ribbon Blender Can You Trust?
But out of all the thousands, if not millions of manufacturing companies in China, which one fits best to your business style?
For more than 12 years, Yinda Machinery has continuously supplied corporations and enterprises with industrial ribbon blenders. The colorful mix of businesses in the pharmaceutical industry, the chemical industry, the food industry, and even the cosmetics industry helped us achieve milestones that other manufacturing companies are still yet to achieve.
From regular industrial ribbon blenders, to full-on double cone blenders and heavy-duty air classifier mills, we will never fail you!
That’s just the icing on top of the cupcake – Yinda Machinery is also the supplier or the manufacturer that you can absolutely trust when it comes to other powder handling machines as well, like tray dryers, pin mill grinders, vibro sifters, and many more!
Why Choose Us For Your Ribbon Blenders?
The pros of working with us clearly outweigh the cons, and this is due to the fact that we are a versatile and a diversified company.
Among the many reasons why it’s best to choose Yinda Machinery’s lineup of industrial ribbon blenders include:
- All our ribbon blenders have been carefully and thoroughly engineered
- We source out all of our raw materials and products from the most trusted manufacturers in the supply chain
- We can deliver earlier than the estimated time of completion and arrival
- Yinda Machinery can guarantee quality even if you need a custom industrial ribbon blender
Contact us today and we will be more than glad to send you a free estimate! Work with Yinda Machinery now and experience world-class quality ribbon blenders!
