As consumer trends shift toward clean-label ingredients and natural health products, dried lemon powder has found its place in a wide range of food, beverage, and supplement applications. Producing fine, consistent lemon powder from dried slices requires more than just a basic grinder — it needs a precision-engineered ultrafine pulverizer designed to handle fibrous, oil-rich, and heat-sensitive materials.
At Yinda Machinery, we specialize in food-grade powder processing solutions, and our YDWF Series Air Classifier Mill Lemon Pulverizer is a trusted system for turning dried lemon slices into high-quality, aromatic powder with minimal loss of nutrients.
Why Process Dried Lemon into Powder?
Fine lemon powder is widely used in:
- Instant lemon tea powder
- Dry beverage premixes
- Natural flavoring and seasoning blends
- Herbal medicine and functional food formulas
Compared to whole dried slices, lemon powder is:
- Easier to dose and blend
- Better for packaging and storage
- More versatile across industries
However, dried lemon slices contain essential oils, seeds, and vitamin C, all of which can be damaged by excessive heat during grinding. We recommend low temperature grinding.
Yinda YDWF series Air Classifier Mill Lemon Pulverizador (80-320 Mesh)
Our YDWF Series Air Classifier Mill Lemon Pulverizer is built for continuous, hygienic, and highly efficient grinding of natural plant materials. Constructed with SUS304 or SUS316L stainless steel, it meets food and pharmaceutical-grade requirements, and can be configured to suit production scales from 20 kg/h to over 1500 kg/h.
YDWF series Lemon Pulverizer
https://www.youtube.com/watch?v=zAoQOI3LmJo

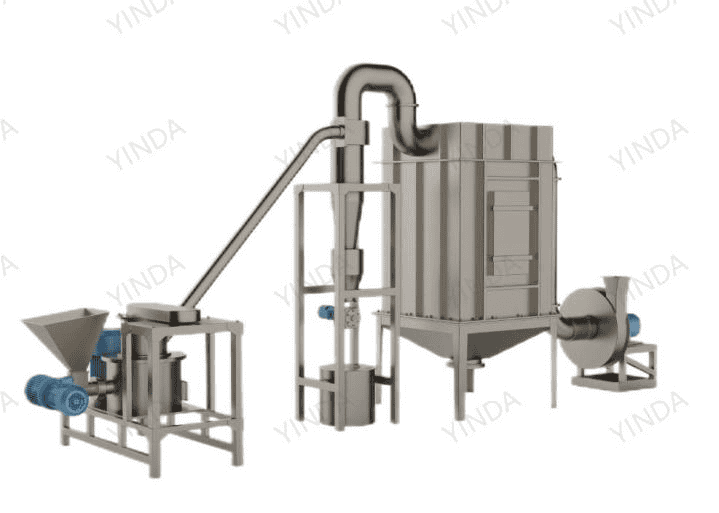

Yinda YDWF series Air Classifier Mill Lemon Pulverizer is a type of industrial grinding mill that grinds and classifies in one machine. It is composed of the main milling part, the connected pipes, the cyclone dust-free system, and the high-press centrifugal fan.

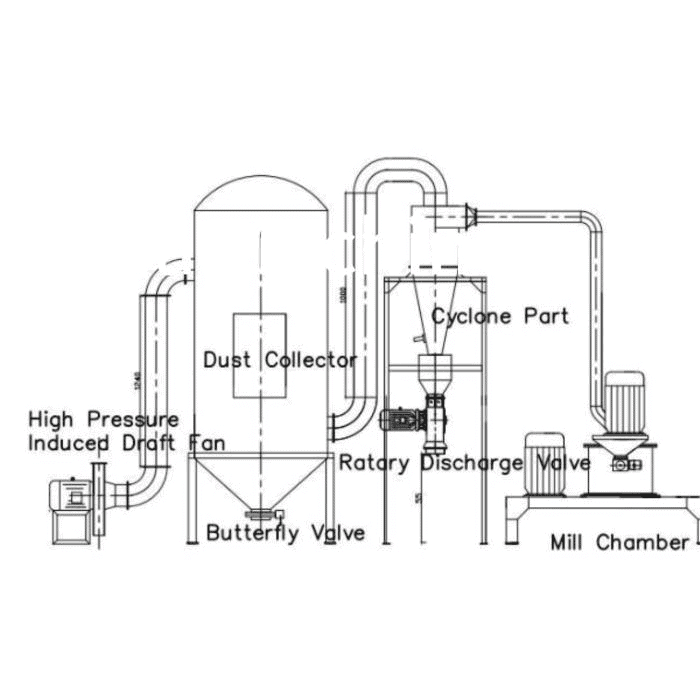

drawing of YDWF series Air Classifier Mill Lemon Pulverizer
https://www.youtube.com/watch?v=EkITqVY7rA0
How does the YDWF Air Classifier Mill Lemon Pulverizer work?
The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fast rotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.
As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe be means of negative pressure wind conveyance.The discharge material meets the requirement for the product.
Key Components of YDWF Molino clasificador de aire Lemon Pulverizer

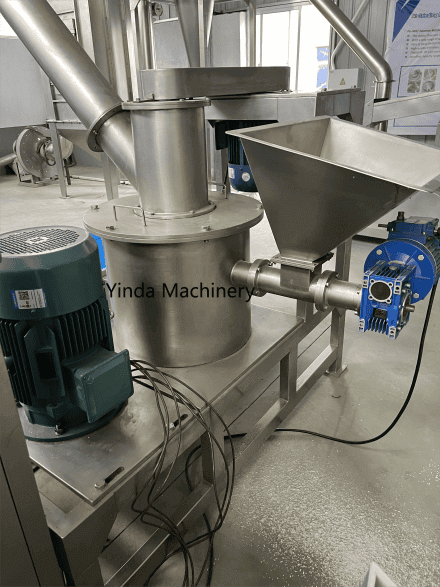

milling part
grinding rotor

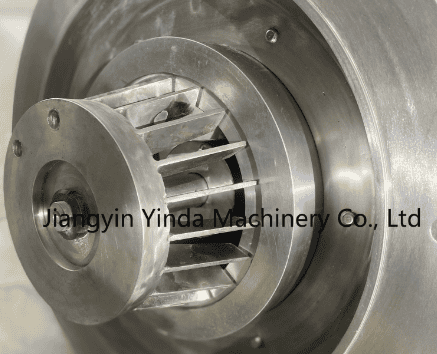

Classifier impeller

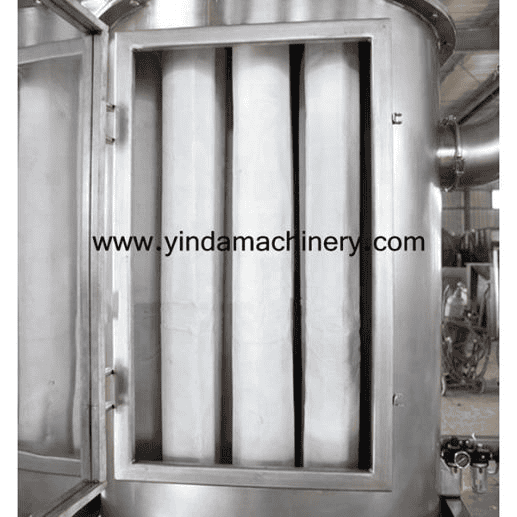

bag filter

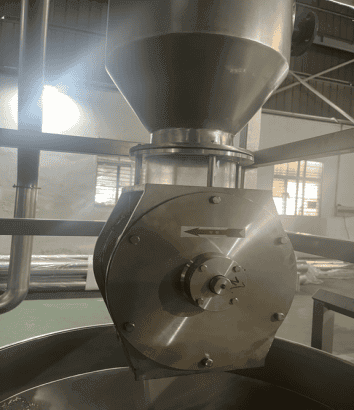

cyclone separator outlet
Recommended Configuration: Industrial Chiller
When grinding dried lemon slices, the high-speed impact inside the grinding chamber may generate heat, which can lead to loss of aroma, discoloration, or even sticky residue on the chamber wall. To maintain the natural color, citrus fragrance, and powder flowability, it is recommended to equip the YDWF Lemon pulverizer with an industrial chiller or cold air cooling system. This setup keeps the grinding process at a low temperature and ensures a clean, high-quality lemon powder output.

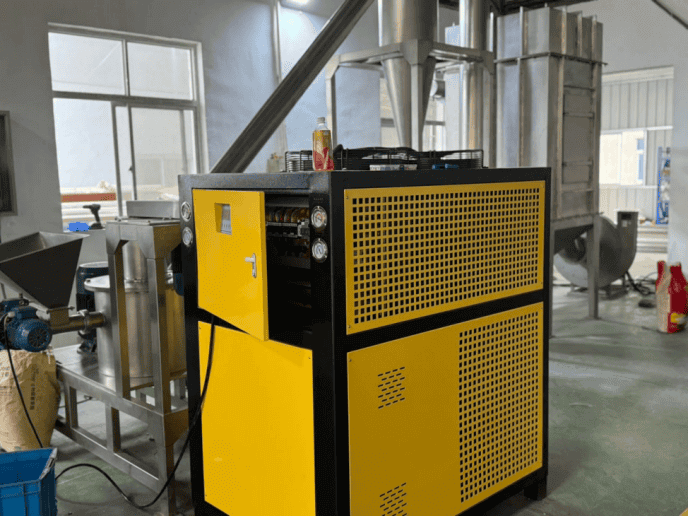

Industrial chiller
YDWF Lemon Pulverizer: Model Options for Various Production Scales
To meet different production requirements, Yinda’s YDWF lemon ultrafine pulverizer is available in multiple models. From small-scale batches for startups to large-scale continuous processing for industrial manufacturers, we provide flexible solutions tailored to your capacity needs.
| Modelo | YDWF-15 | YDWF-20 | YDWF-30 | YDWF-60 | YDWF-80 | YDWF-100 | YDWF-120 |
| Production capadty(kg/h) |
20-50 |
50-200 |
100-300 |
300-600 |
500-800 |
600-1000 |
800-1500 |
| Tamaño de alimentación (mm) | ≤10 | ||||||
| Trituración finura (malla) | 80-320mesh | ||||||
| Potencia del motor (kw) | 22.8 | 31.3 | 44.35 | 84.15 | 114 | 134 | 150 |
| dimension(m) | 3×1.6×2.6 | 3.5×1.9×3.3 | 3.8×1.9×3.3 | 5×2.6×4.3 | 5.8×2.8×4.3 | 5.8×3×4.3 | 5.8×3.2×4.3 |
Applications of the YDWF Lemon Pulverizador
The YDWF Air Classifier Mill Lemon Pulverizer is widely used across the food, chemical, and pharmaceutical industries for processing a variety of heat-sensitive, fibrous, or herbal materials.
Common materials include:
1-Spices & herbs: chili, ginger, turmeric, cinnamon, licorice
2-Fruit peels & dried fruits: lemon, orange peel, tangerine peel
3-Leafy plants & botanicals: moringa, mint, hibiscus, green tea
4-Pharmaceutical & functional powders: ginseng, mushroom, dandelion
5-sugar, rice, salt, corn, grain,shell, seaweed, cassava,bean,etc.
With a fineness range of 80–320 mesh and optional cooling systems, the YDWF series is ideal for:
- Instant tea and fruit powder production
- Herbal and traditional medicine processing
- Natural flavoring and food additives
- Nutraceuticals, supplements, and specialty chemicals
Yinda’s YDWF Air Classifier Mill Lemon Pulverizer is a reliable solution for turning dried lemon slices into high-quality fine powder.
