Advanced Instant Tea Processing Equipment: Pin Mill with Pulse Dust Collection System Solution for Crystal Instant Tea
A practical B2B solution for grinding sugar-containing crystal instant tea with better temperature control, anti-moisture protection, uniform particle size, and dust-free continuous production.
In modern instant tea production, crystal instant tea with sugar content is a high-value material with crystalline texture, strong hygroscopicity, and easy recrystallization. It places strict demands on processing temperature, humidity, and production environment. For manufacturers, the key challenge is how to improve capacity, stabilize quality, reduce loss, and preserve natural flavor, solubility, and crystal structure while avoiding caking, melting, and recrystallization.
1. Why Precision Processing Technology Matters for Crystal Instant Tea
In sugar-containing crystal instant tea production, grinding is not only about reducing particle size. It directly affects:
- Final powder particle uniformity
- Retention of flavor components
- Control of temperature and humidity
- Production stability and continuity
- Market competitiveness of end products
2. What Is a Pin Mill with Pulse Dust Collection System?

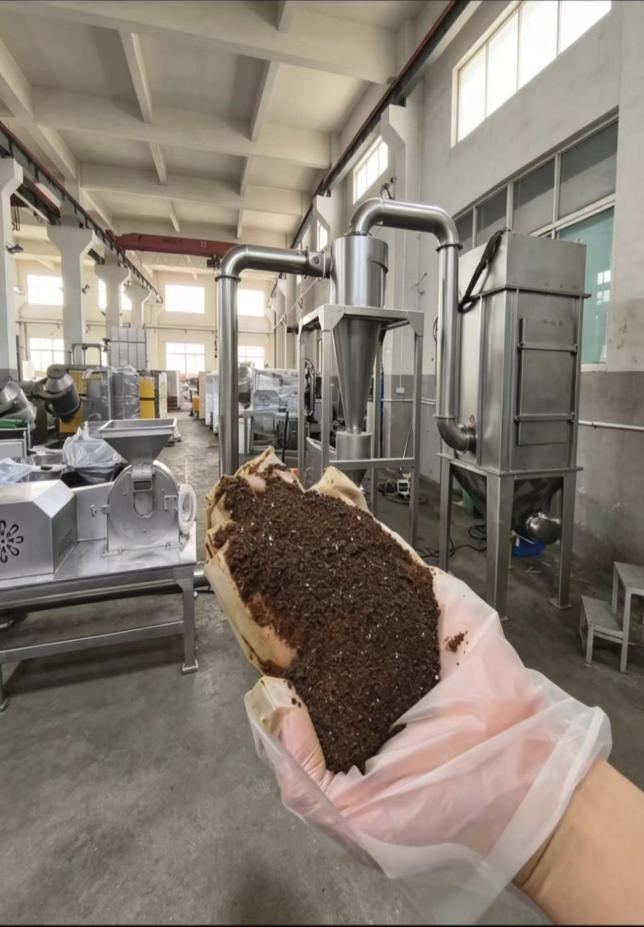

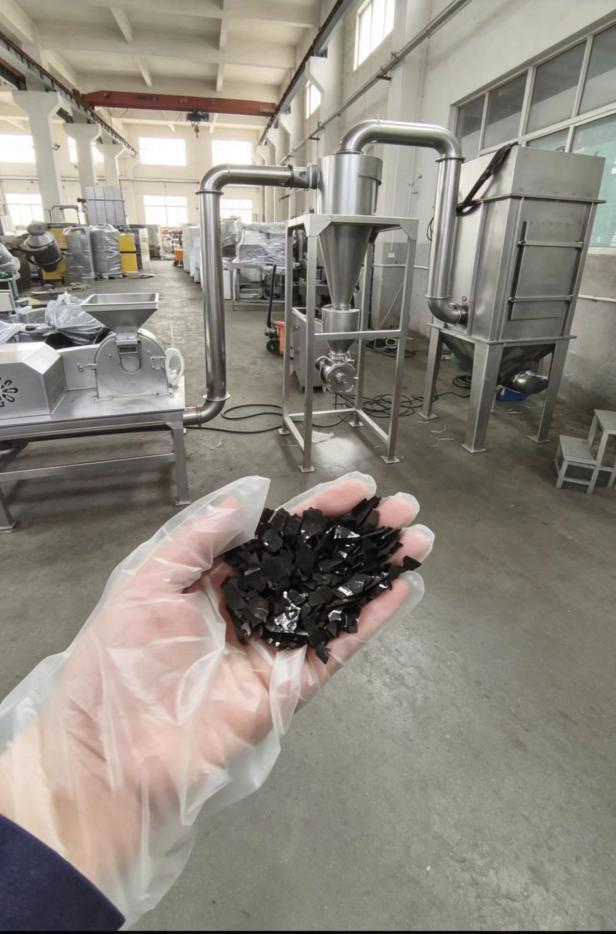

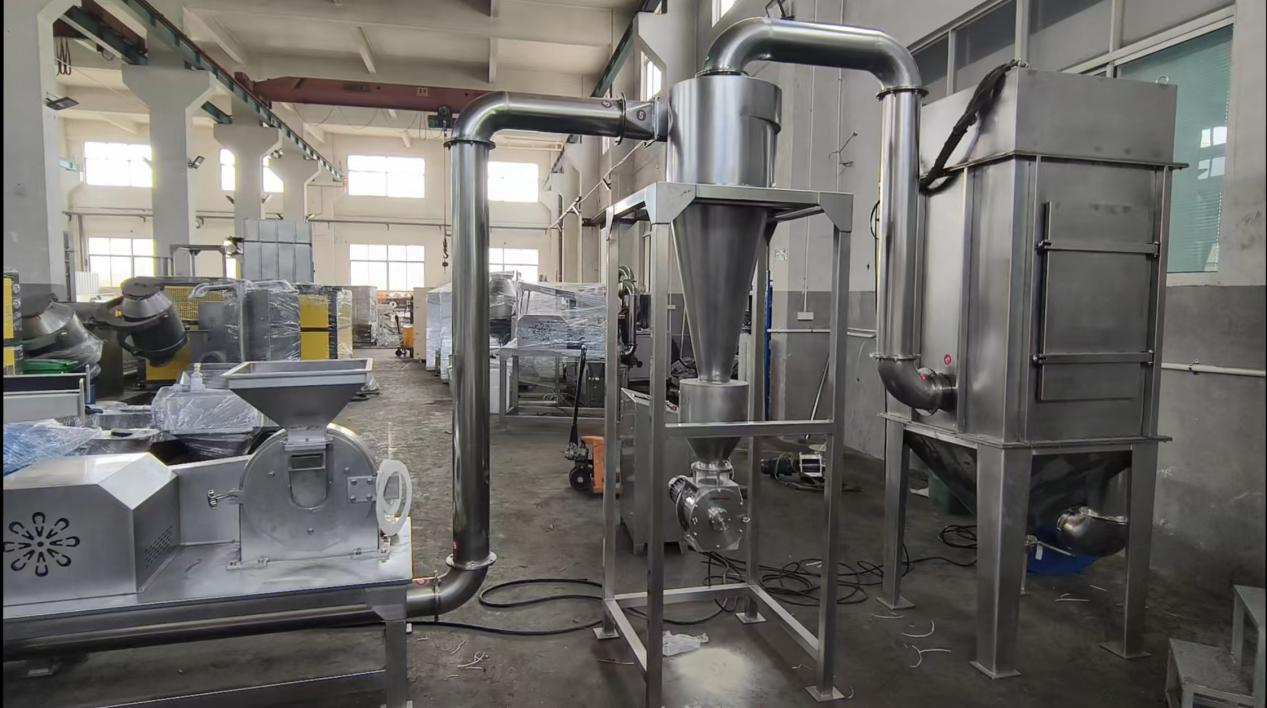

UNE Pin Mill with Pulse Dust Collection System uses high-speed rotating pin discs to impact, shear, and pulverize materials into uniform fine powder. The system is equipped with a full-seal structure and pulse dust collection system, enabling low-temperature, dust-free, closed, and continuous grinding.
Why It Fits Crystal Instant Tea
The optimized structure helps control temperature rise and isolate external moisture, making it especially suitable for heat-sensitive, sugar-rich, easy-caking crystal materials.
YDWS Series Pin Mill Technical Data
| Parameter | YDWS-20 | YDWS-30 | YDWS-40 | YDWS-60 | YDWS-80 | YDWS-100 |
|---|---|---|---|---|---|---|
| Capacité (kg/h) | 15–30 | 50–80 | 120–400 | 200–600 | 600–800 | 800–1500 |
| Speed of Principal Axis (r/min) | 4500 | 3800 | 3600 | 2600 | 2000 | 1600 |
| Taille d'entrée (mm) | ≤10 | ≤10 | ≤10 | ≤12 | ≤15 | ≤15 |
| Output Size (mesh) | 60–120 | 60–120 | 60–120 | 60–120 | 60–120 | 60–120 |
| Grinding Motor (kW) | 4 | 5.5 | 7.5 | 18.5 | 37 | 45 |
| Dust Collector Motor (kW) | 0.55 | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 |
| Grinding Machine (mm) | 600×600×1200 | 650×650×1350 | 750×750×1400 | 1000×800×1600 | 1200×1000×1800 | 1500×1300×1950 |
| Machine with Dust Collector (mm) | 1100×650×1650 | 1300×750×1850 | 1350×800×1920 | 2200×980×2200 | 2200×1100×2400 | 2400×1300×2400 |
3. Why Professional Pin Mill Grinding Is a Must for Crystal Instant Tea
Crystal instant tea has crystalline structure, high sugar content, strong hygroscopicity, and easy recrystallization. It is extremely sensitive to both temperature and humidity. Ordinary grinders usually cannot provide stable environmental control, which creates several direct production problems.
Problems with Ordinary Grinders
- Material melting, sticking, and caking
- Recrystallization caused by heat and moisture
- Aroma loss and color darkening
- Uneven particle size and poor solubility
- Unstable product quality
What a Professional Pin Mill Ensures
- Low-temperature grinding
- Closed anti-moisture design
- Stable operation without blocking or bridging
- Uniform particle size with excellent solubility
- Dust-free and hygienic production
- High efficiency and low loss
4. Pin Mill with Pulse Dust Collection System – Optimized Solution for Crystal Instant Tea
le YDWS Series Pin Mill with Pulse Dust Collection System is specially designed for the processing difficulties of crystal instant tea, including high sugar content, easy moisture absorption, easy recrystallization, and sensitivity to temperature and humidity.
Why This System Works Better
The structure, air duct, sealing, heat dissipation, and pin layout are optimized to solve common industry pain points such as sticking, caking, blocking, overheating, recrystallization, and aroma loss.
Low-Temperature Grinding
Helps prevent sugar melting and preserves natural tea flavor.
Full-Seal & Anti-Moisture
Closed structure isolates humid air and reduces recrystallization risk.
Anti-Sticking & Anti-Clogging
Optimized chamber and pin disc improve smooth discharge for sugar-rich crystals.
Pulse Dust Collection
Fully enclosed dust-free operation with lower material loss and cleaner production.
Adjustable Fineness
20–120 mesh adjustable by changing screens for different solubility needs.
Food-Grade Construction
All contact parts are stainless steel for hygiene, cleanability, and low contamination risk.
Conclusion: Build a More Stable Crystal Instant Tea Grinding Process
For instant tea manufacturers, a professional grinding system is the key to stable product quality. Yinda Machinery’s pin mill with pulse dust collection system provides low-temperature, anti-moisture, dust-free, and stable grinding performance, meeting the strict processing requirements of sugar-containing crystal instant tea.
We support global customers with material testing, customized solutions, complete line design, installation, commissioning, and after-sales support.
Need Support for Crystal Instant Tea Powder Handling?
Contact Yinda Machinery for professional advice on pin mills, powder handling equipment, and customized crystal instant tea grinding solutions based on your material, fineness target, and production capacity.
