Professional Biscuit Crumb Grinding Solutions

Professional Biscuit Crumb Grinding Solutions: Selecting the Right Equipment for Your Production Scale

In the food processing industry, efficient and precise biscuit crumb grinding is essential for producing high-quality ingredients used in various applications, from coating systems to ready-made dessert bases. YINDA MACHINERY offers specialized grinding solutions tailored to different production capacities, ensuring optimal particle size distribution and product quality.

Optimal Solution for Small to Medium Production (Below 100kg/hr)

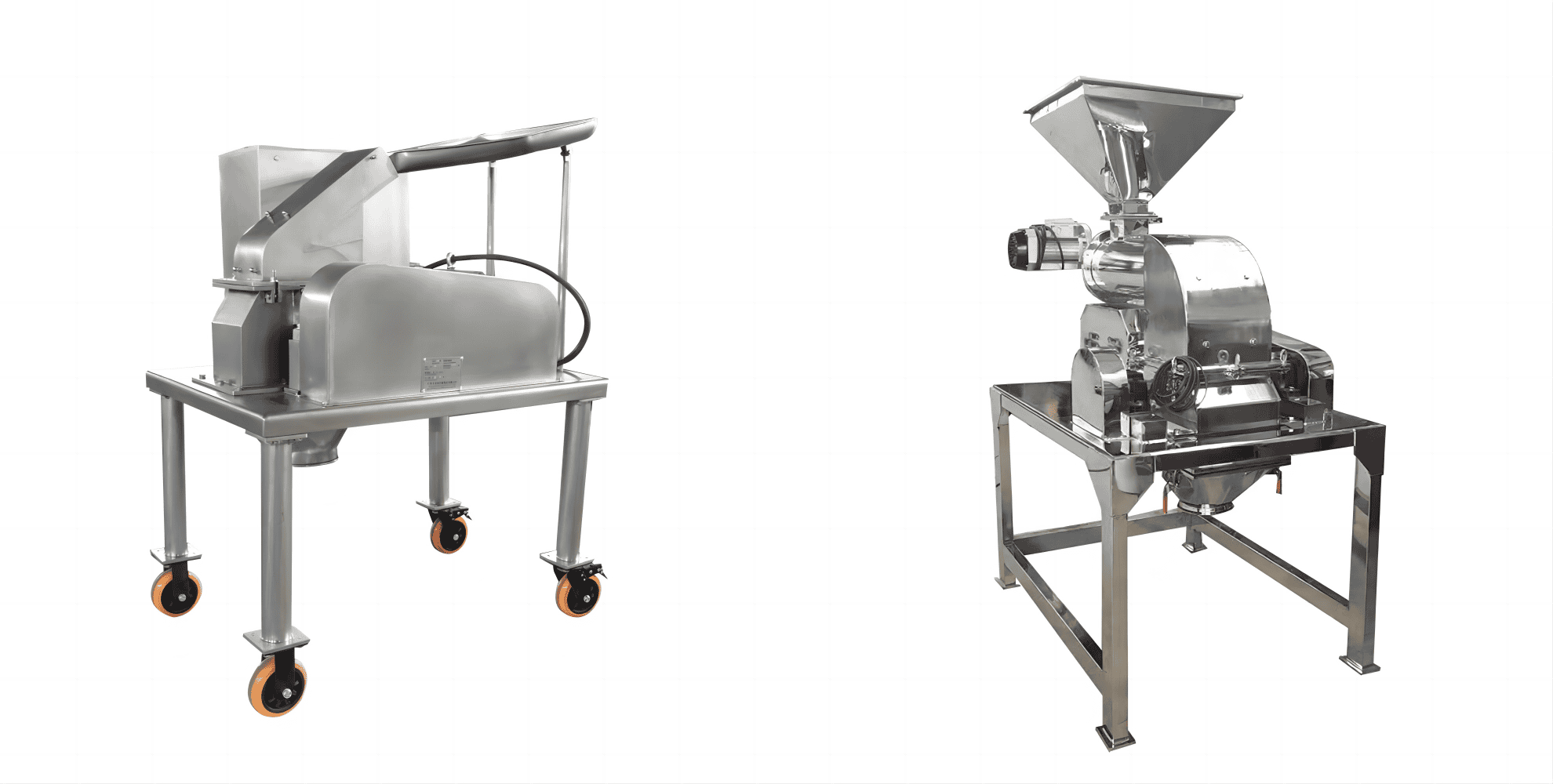

YDGS Series Biscuit Crumb Grinding FITZ MILL

机器结构

The YDGS Series FITZ MILL features a compact and sophisticated design incorporating:

– A precision-engineered rotor assembly with specialized cutting knives

– An optimized grinding chamber with interchangeable screens (20-100 mesh)

– A direct-drive system ensuring consistent operation

– A well-sealed feeding hopper with dust-proof plate or cover

– Stainless steel construction meeting food-grade requirements

– Easy-access machine panels for maintenance and cleaning

工作原则

The FITZ MILL operates on a sophisticated size reduction principle:

Biscuit material enters through the feeding hopper into the grinding chamber
The high-speed rotor, equipped with specialized cutting knives, creates a controlled impact and cutting action
Material is processed against precisely engineered screen plates
The final product size is determined by the selected screen aperture size
Ground material is discharged through the bottom outlet

Key Features and Advantages

-Precise Particle Size Control: Interchangeable screens allow for customized particle size distribution

-Minimal Heat Generation: Advanced rotor design reduces product heating during grinding

-Low Noise Operation: Sophisticated engineering ensures quiet operation below 75dB

-Easy Cleaning: Simple disassembly for thorough cleaning and maintenance

-Compact Footprint: Space-efficient design ideal for smaller production facilities

-Energy Efficiency: Optimized power consumption for small-scale production

-GMP Compliance: Fully compliant with food industry standards

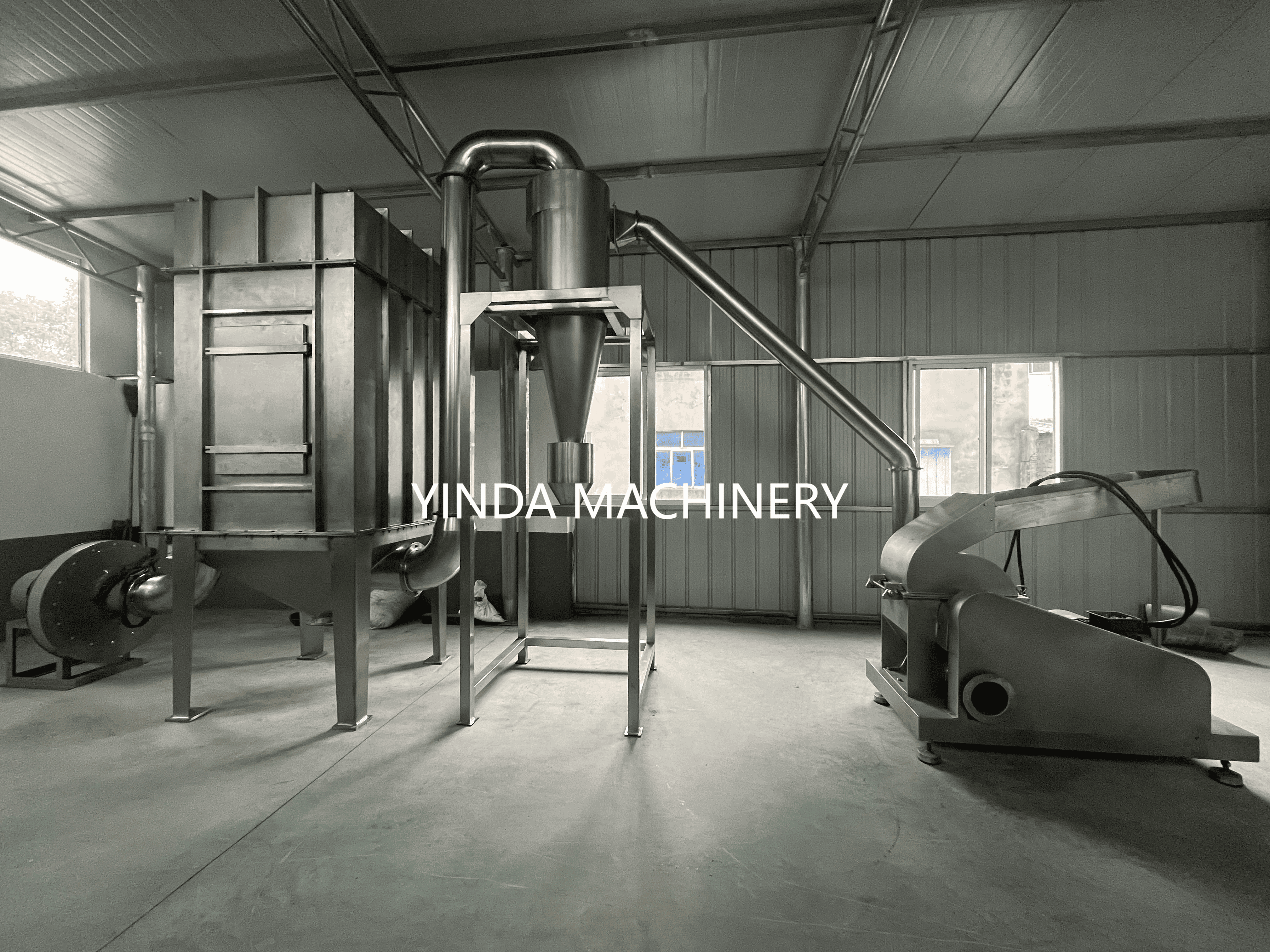

YDGS Series Biscuit Crumb Grinding Cyclone Dust-free Hammer Mill: High-Capacity Solution (Above 100kg/hr)

YDGS Series Biscuit Crumb Grinding Cyclone Dust-free Hammer Mill

机器结构

This advanced system comprises several integrated components:

– Heavy-duty hammer mill grinding chamber

– Cyclone separation system

– Dust collection and filtration unit

– Robust frame construction with vibration dampening

– High pressure centrifugual blower

– Advanced button control panel with easier operation

– Vibrating sifter for double comfirmed partice size uniformity (optional device)

– Pneumatic transfer system for finished product (optional device)

– Automated feeding system (optional)

工作原则

The system operates through a sophisticated multi-stage process:

Material is fed continuously through a hopper
High-speed hammers create powerful impact forces for size reduction
Qualified ground material is aborbed to the cyclone separator by the centrifigual fan
The cyclone system efficiently separates the final product
Integrated dust collection ensures a clean working environment
Finished product can be collected in a vibrate sifter or bags directly.

Key Features and Advantages

– High Production Capacity: Efficiently processes over 100kg/hr

– Dust-Free Operation: Advanced cyclone and filtration system ensures clean operation

– Consistent Particle Size: Multiple screen options for precise size control

– Energy-Efficient Design: Optimized power consumption despite high capacity

– Advanced Safety Features:

Emergency stop systems

Overload protection

Temperature monitoring (optional device)

– Low Maintenance Requirements: Robust construction with wear-resistant components

– Superior Product Quality: Uniform particle size distribution with minimal fines

Application Considerations and Recommendations

When selecting between these two systems, consider:

Production Volume Requirements:

– YDGS series FITZ MILL: Ideal for batches up to 100kg/hr

– YDGS series Cyclone Hammer Mill: Optimal for continuous production above 100kg/hr

Space Availability:

– YDGS series FITZ MILL requires minimal floor space

– YDGS series Cyclone system needs additional space for the separation system

Product Specifications:

– Both systems offer multiple screen options for desired particle size

– Cyclone system provides additional control over fine particle separation

Operating Environment:

– Both systems meet strict hygiene standards

– Cyclone system offers superior dust control for larger operations

Conclusion

YINDA MACHINERY’s biscuit crumb grinding solutions offer tailored options for different production scales. The YDGS series Biscuit Crumb Grinding FITZ MILL provides precise, efficient grinding for smaller operations, while the YDGS series Biscuit Crumb Grinding Cyclone Dust-free Hammer Mill delivers high-capacity processing with advanced dust control. Both systems ensure high-quality output while maintaining strict hygiene standards and operational efficiency.

Visit our website for more information or reach out to our technical team for a personalized consultation. Let Yinda Machinery be your trusted partner in efficient and hygienic biscuit crumb grinding!

dennie@yindamachinery.com

yindachina@gmail.com

电话（WhatsApp）：+86 13914192807

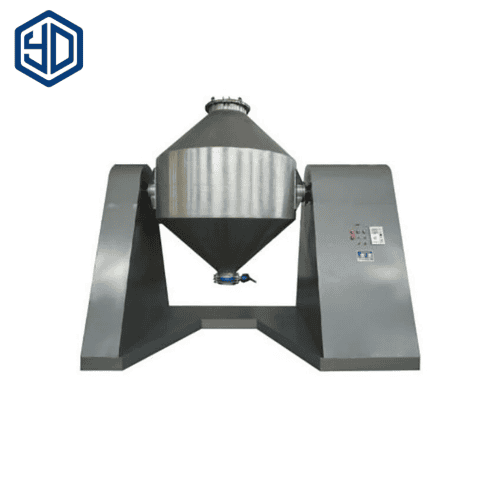

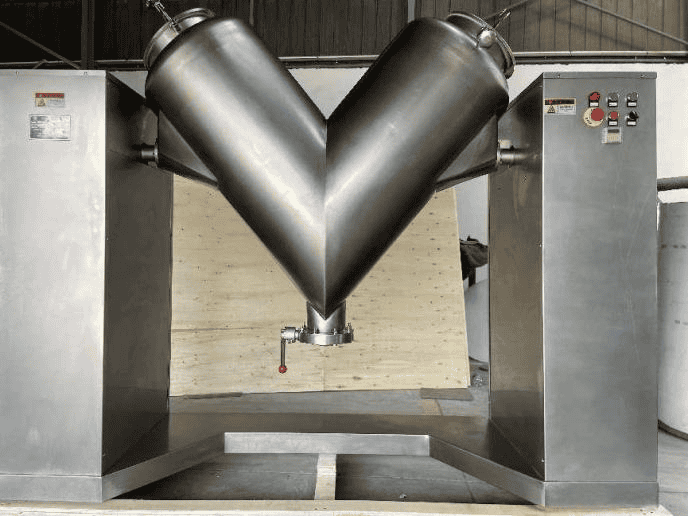

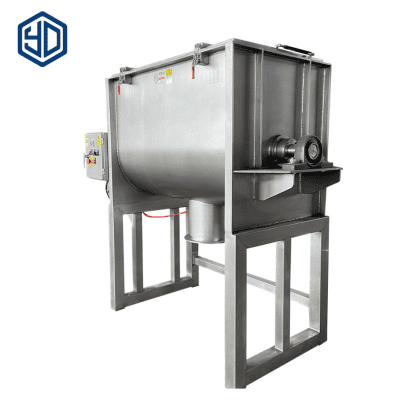

Other related powder handling equipment for your options
