Comprehensive Guide to Sugar 铣削 Machines by Yinda Machinery
In today’s food, pharmaceutical, and chemical industries, fine sugar powder plays a crucial role. The demand for sugar powder has significantly increased due to its essential applications in confectionery, bakery products, beverages, and pharmaceutical formulations. Fine sugar dissolves more quickly, enhances texture, and improves the consistency of final products. In industries such as cosmetics and medicine, ultra-fine sugar powder is required for specialized formulations, ensuring product stability and homogeneity. To meet these growing demands, efficient and precise sugar milling machines are essential. Yinda Machinery provides a range of advanced sugar milling solutions from small-scale production to large-scale investment , catering to different industrial requirements.
sugar powder

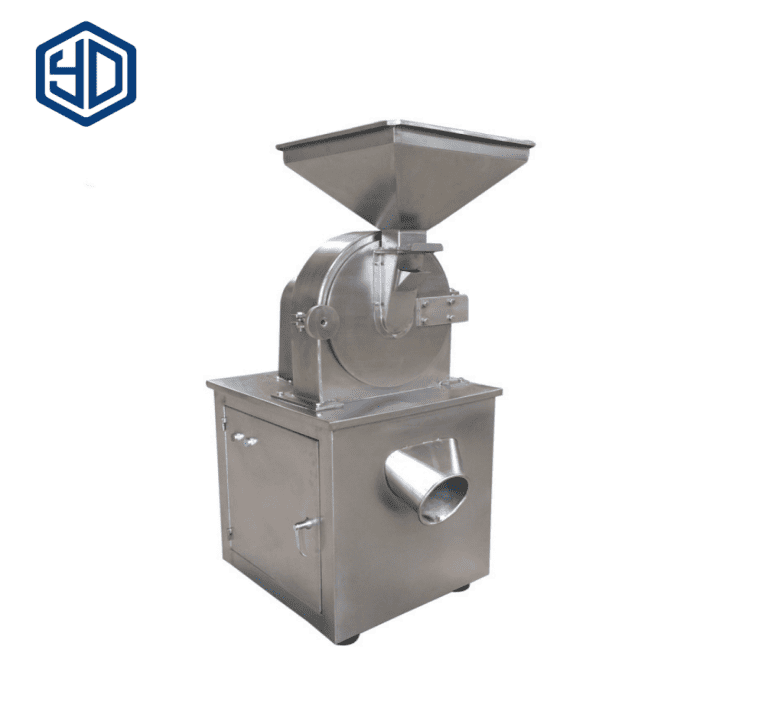

1. Small-Scale YDWS Single Pin Mill Sugar Milling Machine
YDWS series Single Pin Mill Sugar Milling Machine
https://yindamachinery.com/desklop-design-stainless-steel-pin-mill/
产品描述：
YDWS single Pin Mill Sugar Milling Machine mainly consists of a feeding hopper, milling chamber, discharge port, and electric control system.
It is a cost-effective and versatile machine designed for grinding sugar into fine powder. This machine is ideal for small-batch processing in food production facilities, pharmaceutical applications, and chemical industries where fine and consistent sugar powder is required.
工作原则：
YDWS single Pin Mill Sugar Milling Machine uses high-speed relative movement of the movable fluted disc and the fixed disc to crush the sugar granules . The final particle size is controlled by replacing different sizes of inner screen and adjusting the rotor speed, offering a fineness range of 20-120 mesh. The machine’s simple design ensures easy operation, cleaning, and maintenance, making it a popular choice for small-scale manufacturers.
Main Feature:
1-Compact and lightweight for easy placement and operation.
2-Adjustable sieve mesh for customized fineness.
3-Simple structure allows quick cleaning and maintenance.
技术数据:
| 模型 | YDWS-20 | YDWS-30 | YDWS-40 | YDWS-60 | YDWS-80 | YDWS-100 |
| 容量（公斤/小时） | 10-30 | 50-60 | 100-200 | 200-300 | 400-500 |  500-600 |
| Input size(mm) | ≤10 | ≤10 | ≤10 | ≤12 | ≤15 | ≤15 |
| Output size(mesh) | 20-120 | |||||
| Grinding Motor（KW） | 4 | 5.5 | 7.5 | 18.5 | 37 | 45 |
| 尺寸(mm) | 600×600×1200 | 650×650×1350 | 750×750×1400 | 1000×800×1600 | 1200×1000×1800 | 1500×1300×1950 |

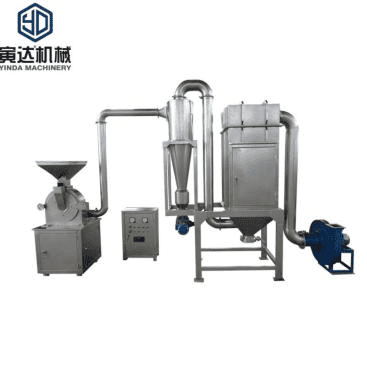

2.YDWS series cyclone dust-free Pin Mill Set Sugar Milling Machine(20-120 Mesh)
YDWS series cyclone dust-free Pin Mill Set Sugar Milling Machine
https://yindamachinery.com/cyclone-pin-mill-with-dust-collector/
产品描述：
An improved version of YDWS single Pin Mill Sugar Milling Machine, it adds a cyclone dust-free system to the single Pin Mill Machine. It is designed for industries that require clean, dust-free working environments and efficient powder collection.
工作原则：
YDWS series cyclone dust-free Pin Mill Set Sugar Milling Machine makes use of the high-speed relative movement of the movable fluted disc and the fixed disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust-evacuator box, filtrated and recycled by the filter cylinder.
Main Features:
- Integrated cyclone system ensures a cleaner work area.
- Improved powder collection reduces material loss.
- Suitable for processing food-grade materials with high hygiene requirements.
技术数据:
| 模型 | YDWS-30 | YDWS-40 | YDWS-60 | YDWS-80 | YDWS-100 | YDWS-120 |
| 容量（公斤/小时） | 100-200 | 300-400 | 800-1000 | 1200-1500 | 1800-2500 | 2000-3000 |
| Input size(mm) | ≤10 | ≤10 | ≤12 | ≤15 | ≤15 | ≤15 |
| Output Size(mm) | 20-120 mesh | |||||
| Grinding Motor（KW） | 5.5 | 7.5 | 45 | 55 | 75 | 90 |
| 鼓风机(kw) | 2.2 | 7.5 | 37 | 37 | 45 | 55 |
| 尺寸(mm) | 1600x850x1850 | 1800x800x1920 | 2200×980×2000 | 2200x1100x2400 | 2400x1300x2400 | 2600x1450x2600 |

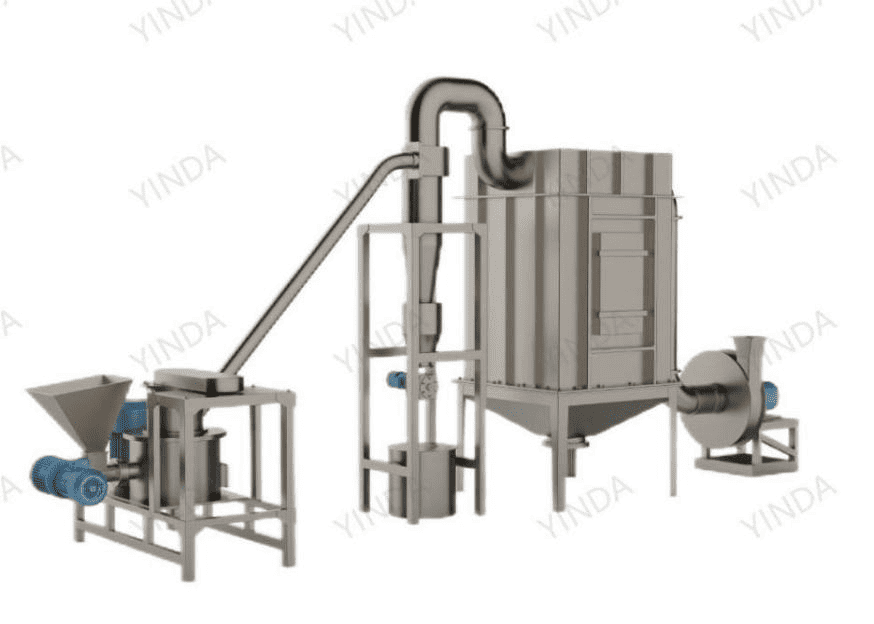

3.YDWF series Air Classifier Mill Sugar Milling Machine (120-400 Mesh)
YDWF series Air Classifier Mill Sugar Milling Machine
https://yindamachinery.com/air-classifier-mill/
产品描述：
For industries requiring superfine sugar powder, YDWF series Air Classifier Mill Sugar Milling Machine is the ideal solution. This machine is capable of grinding sugar to an ultra-fine consistency, reaching a fineness of 120-400 mesh. It is widely used in pharmaceutical manufacturing, high-end confectionery production, and cosmetic applications.
工作原则：
YDWF series Air Classifier Mill Sugar Milling Machine utilizes high-speed impact grinding combined with air classification to achieve ultra-fine sugar powder. As the sugar enters the grinding chamber, it is pulverized by the impact and shear forces of a high-speed rotating disc and fixed grinding elements. Simultaneously, an integrated air classifier separates fine particles from coarse ones, ensuring precise particle size control. The fine powder is carried by airflow to the collection system, while oversized particles are recirculated for further grinding. This process ensures uniform and consistent powder quality, making the machine ideal for food and pharmaceutical applications.
Main Features:
1-High-precision grinding for ultra-fine sugar powder.
2-Airflow classification ensures uniform particle distribution.
3-Ideal for industries with strict particle size requirements.
4-The combination of impact grinding and air classification enhances processing efficiency and reduces energy consumption.
技术数据:
| YDWF series ACM Mill Sugar Milling Machine | |||||||
| 模型 | YDWF-15 | YDWF-20 | YDWF-30 | YDWF-60 | YDWF-80 | YDWF-100 | YDWF-120 |
|
容量（公斤/小时） |
20-100 |
50-200 |
100-500 |
200-800 |
300-1000 |
800-1500 |
1500-2000 |
| Feeding size(mm) | ≤10 | ||||||
| 细度（目） | 120-400 mesh | ||||||
| Motor power (kw) | 14.87 | 27.3 | 42.12 | 70.45 | 114 | 134 | 150 |
| 尺寸(mm) | 3000×1600× 2600 | 3500×1900× 3300 | 3800×1900× 3300 | 5000×2600× 4300 | 5800×2800× 4300 | 5800×3000× 4300 | 5800×3200× 4300 |
Comparison of Sugar Milling Machines:
| Machine Model
|
细度（目） | 特征 | 应用 |
| YDWS Single Pin Mill Sugar Milling Machine | 20-120 | Simple operation, easy cleaning | Small-scale production, food, pharmaceuticals, chemicals |
| YDWS cyclone dust-free Pin Mill Sugar Milling Machine | 20-120 | Dust-free operation, improved collection efficiency | Food, chemical, and pharmaceutical industries requiring clean environments |
| YDWF series Air Classifier Mill Sugar Milling Machine | 120-400 | High precision, ultra-fine powder output | Pharmaceuticals, confectionery, cosmetics requiring superfine sugar powder |
Yinda Machinery offers a diverse range of sugar milling machines to accommodate various industrial needs. Whether you need a basic grinder for small-scale production or an advanced ultrafine pulverizer for high-end applications, our machines ensure efficiency, precision, and ease of use. If you are looking for a reliable sugar grinding solution, contact Yinda Machinery today to find the best equipment for your needs!
