Oscillating granulator for pharmaceutical powder processing

Oscillating granulators are also known as the swing granulator, which are commonly used in the pharmaceutical, chemical and food industries. They are mainly used to reduce particle size and to form granules, which are essential for processes such as tablet compression and capsule filling. Now let us take you through the YDYK series Oscillating granulator.

What is the structure of the YINDA YDYK series Oscillating Granulator?

The main structure is the hopper, the oscillating rotor, the screen, the drive system, the discharge port, the frame and the electric control panel.

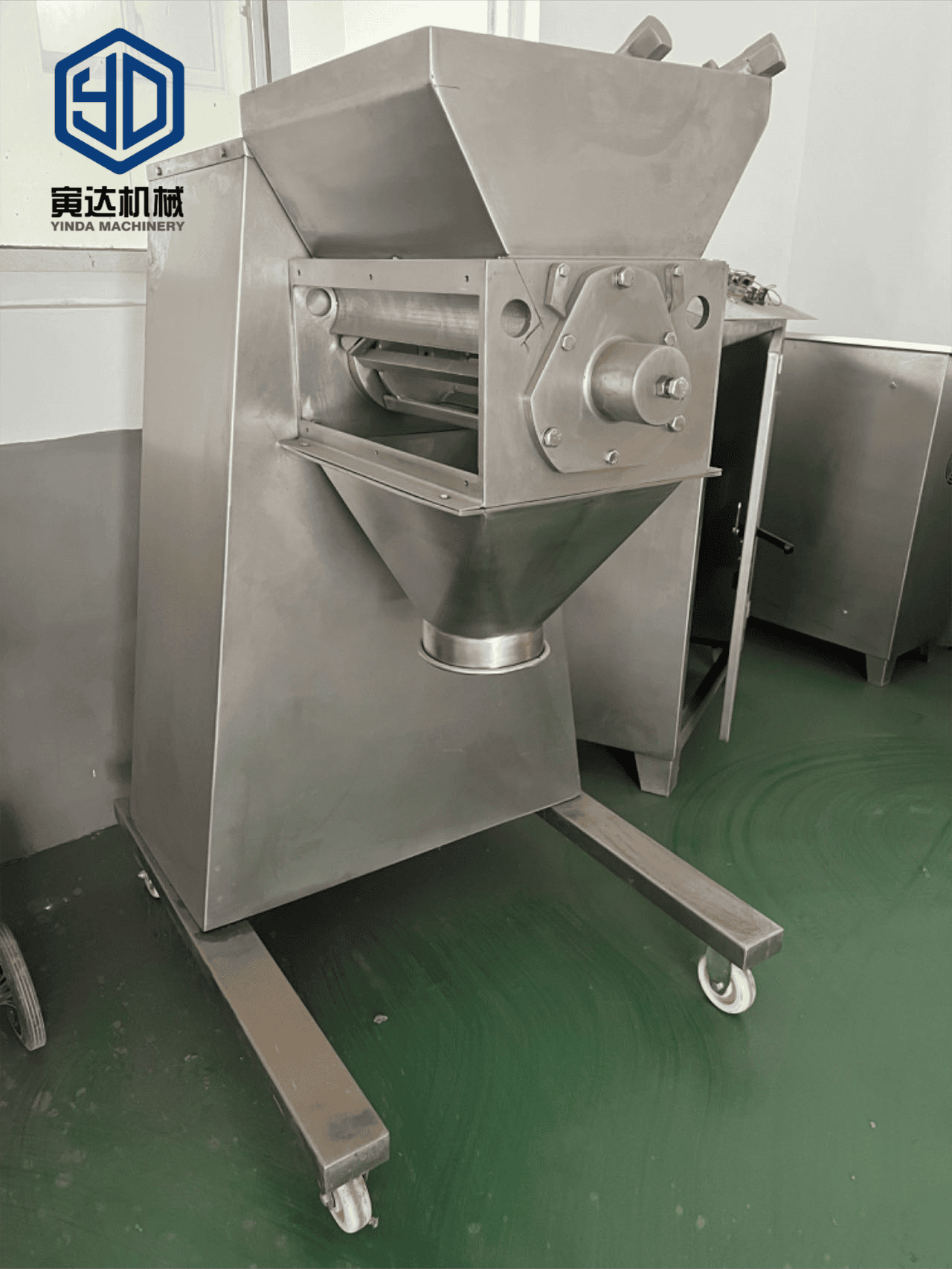

YINDA YDYK series Oscillating Granulator for pharmaceutical powder processing

Hopper: put in the lumpy materials or materials that need to be granulated.
Oscillating Rotor: The rotor is the core component of the pelletizer and can oscillate back and forth to facilitate the pelletizing process.
screen: the screen surrounds the rotor and determines the final granule size. Yinda YDYK seriesOscillating Granulator can use different screens to obtain different granule sizes.
Drive System: This part provides the necessary movement to the rotor. It usually consists of a motor and a drive system.
Discharge port: After granulation, the material is discharged through the discharge port. The Yinda YDYK series Oscillating Granulator supports customization of the diameter of the discharge port, which makes it easy for you to connect to existing receiving devices.
Frame: The entire assembly is mounted on a sturdy frame, usually with vibration isolation to ensure smooth operation, and the Yinda YDYK seriesOscillating Granulatoralso offers universal wheels to help quickly adjust the position of the machine for greater ease of use.

什么's the working principle of the YINDA YDYK series Oscillating Granulator?

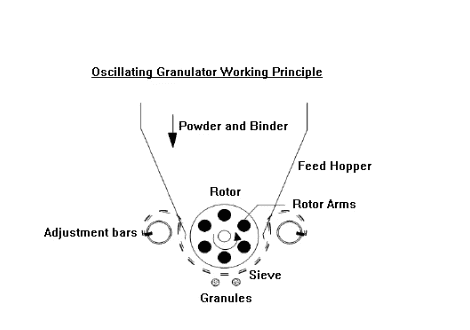

The material to be granulated is fed into the hopper, since the YDYK series Oscillating Granulator is suitable for wet granulation, the material to be fed is in an agglomerated state, therefore, the YDYK is also suitable for breaking up and sieving of lumpy materials.

The oscillating rotor swings back and forth driven by the motor and the driving device to loosen the material through the sieve holes. As the material passes through the screen, it is broken down into smaller particles, the size of which is determined by the size of the screen.

The granular material that passes through the screen flows to the outlet and is transferred to the next processing stage.

The oscillating motion ensures that the material is not only pulverized, but also gently reduced, thus maintaining its integrity and preventing excessive heat build-up that can cause changes in material properties.

什么's the Features of the YINDA YDYK series Oscillating Granulator?

Homogeneous granulation: The design of the YINDA YDYK series oscillating granulator ensures a homogeneous particle size distribution, which is essential for downstream processes.
Adjustable particle size: By changing the sieve mesh, different particle sizes can be obtained, thus realizing the versatility of the process.
Low heat generation: The gentle oscillating action generates very low heat, making it suitable for heat-sensitive processes.
SUS 304 or SUS316L available: can withstand severe conditions of use and is corrosion resistant.
Simple structure and easy to maintenance: The YINDA YDYK series of oscillating granulators have a simple structure and are easily disassembled for thorough cleaning and maintenance, which is critical in industries such as pharmaceuticals.
Flexibility to match different production processes

什么's the Applications of the YINDA YDYK series Oscillating Granulator?

YINDA YDYK series Oscillating Granulator is mainly used in pharmaceuticals, food processing, chemicals, cosmetics, herbal products and so on. The main purpose is to be able to ensure uniformity in the size and shape of the granules, thus ensuring uniform particle size, improving tablet integrity, or solubility, thus helping to provide quality in the final product.

YINDA YDYK series Oscillating granulator is indispensable in industries that require precise granulation of materials. If you happen to have the same needs, don’t hesitate to contact our professional team for a free quote.
