Agarwood leaves are widely used in the tea industry due to their aromatic and medicinal properties. To ensure efficient tea bag production, it is essential to grind dried agarwood leaves into uniform particles, ensuring optimal infusion, consistency in taste, and smooth packaging.
Agarwood Leaf
To make the dry agarwood leaf into uniform particles in the tea bag production line, the Yinda Machinery YDGS series Fitz Mill is the most suitable grinding equipment. It is specifically designed for tea bag production line, to make uniform particles with minimal fine powder generation.
What is a Fitz Mill?
YDGS fitz mill Agarwood Leaf grinding machine comprises hopper, crushing bin, discharge port, and motor. It is a high-efficiency hammer-type milling machine.

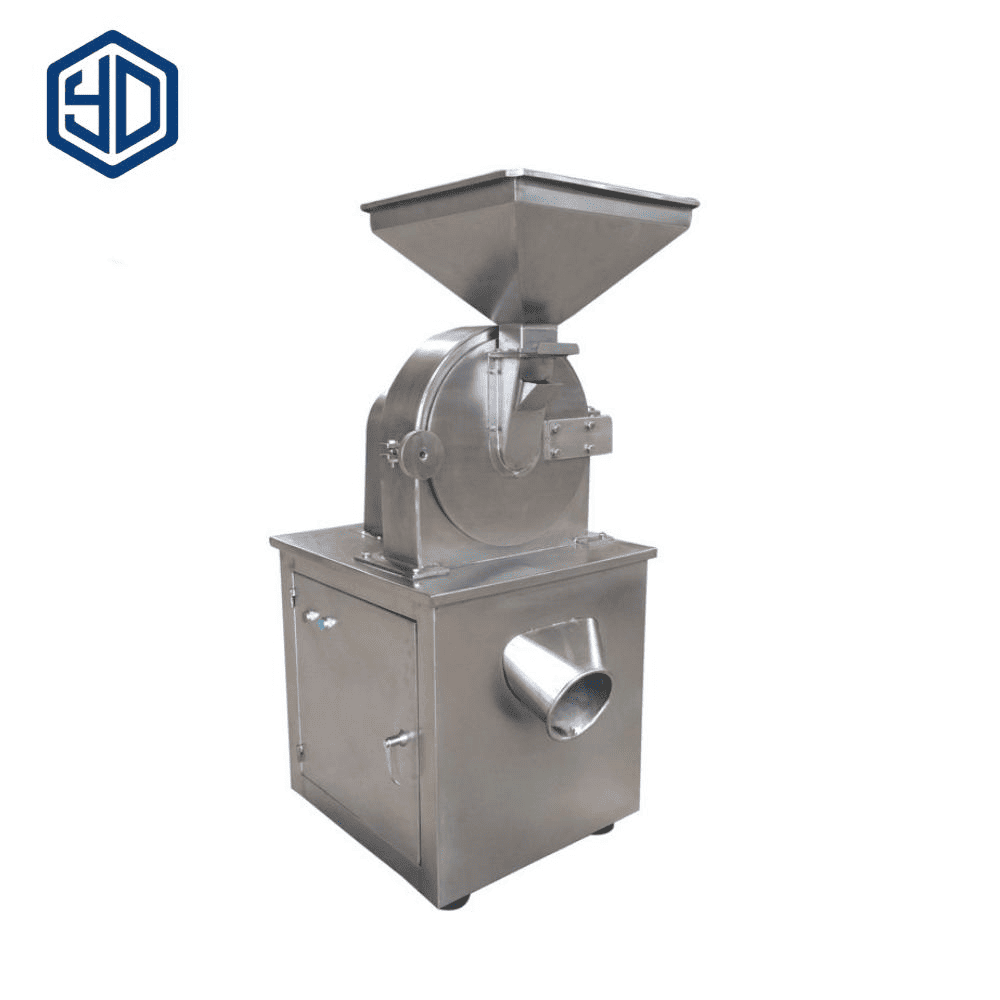

Yinda YDGS series Fitz Mill Agarwood Leaf grinding machine
It is made of full food grade stainless steel 304 with inner and outside polishing treatment, and is widely used for food, chemical, pharmaceutical, and other related industries. This machine has a simple structure, easy to install and operate, low noise , easy to move, good crushing effect, and low power consumption, and so on.
工作原则：
Yinda YDGS series Fitz Mill Agarwood leaf grinding machine operates through a combination of high-speed impact, shearing, and controlled screening to achieve precise particle size reduction.
As the dry agarwood leaves enters the grinding chamber, rapidly rotating hammer blades break it down through impact and friction. The crushed particles then pass through an interchangeable perforated screen, ensuring only those within the desired 2-3mm size range are discharged, while oversized pieces remain for further grinding.

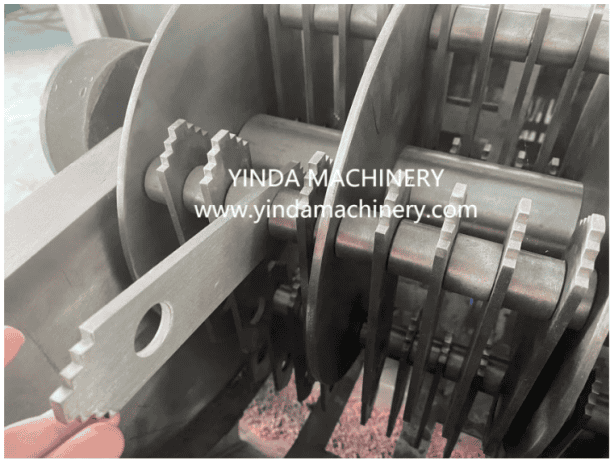

Inner blade of YDGS fitz mil
Why Fitz Mill is an ideal equipment for Agarwood Leaf Grinding in tea bag production line?
1. Efficient Grinding to Ensure Fineness
- Fitz Mill uses high-speed rotating blades or hammers to shear and impact the material, allowing agarwood leaves to quickly reach the desired fineness for tea bag production.
- Adjustablescreen mesh sizes control the output particle size, ensuring uniform powder suitable for different tea bag specifications.
2. Preserves Aroma and Active Ingredients
- The low-temperature grinding design reduces heat generation during the process, preventing the loss of volatile oils and active compounds in agarwood leaves, thus maintaining the tea’s natural aroma and health benefits.
3. Strong Adaptability for Fibrous Materials
- Agarwood leaves contain a high amount of fiber, which may cause clogging or poor grinding performance in conventional grinders. Fitz Mill is designed with optimized blade structures that effectively shear and crush fibrous materials, improving grinding efficiency.
4. Easy to Clean, Compliant with Food Hygiene Standards
- Fitz Mill is made of food-grade stainless steel(SS304 or 316L), ensuring corrosion resistance, rust prevention, and compliance with GMP and food production standards.
- Its structure is designed for easy disassembly and cleaning, reducing material residue and preventing cross-contamination.
5. Low Energy Consumption, Cost-Effective Production
- It can reduceoperational costs and improving overall production efficiency.
Technical Data of Yinda Fitz Mill Agarwood Leaf Grinding Machine
In order to meet the production requirements of different customers, we provide a variety of models for customers to choose, please see the detailed table below
| 模型 | YDGS-8 | YDGS-16 | YDGS-32 | YDGS-60 |
| Motor power(kw) | 3 | 7.5 | 11 | 15 |
| 生产能力(kg/h) | 10-100 | 50-300 | 100-500 | 500-600 |
| Spindle speed(r/min) | 4000 | 4000 | 4000 | 4000 |
| Feeding size(mm) | ≤30 | 30 | ≤30 | ≤30 |
| Finished size(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
In addition, we support customization according to customer requirements.
For achieving precise and uniform agarwood leaf particles with minimal fine powder, the Fitz Mill is the best choice. Its advantages make it ideal for tea bag production, ensuring better infusion, easy packing, and minimal product loss.
About us:
Yinda is specialized in providing overall powder processing solutions, from cleaning machines, dryer machines, coarse crushers, fine powder grinding machines, mixers, vibrating sifters, conveying machines, granulators, filling and packing machines. All of the machines are applied in food, chemical, pharmaceutical, and other industries.
Regarding to the machine quality certifications, we could provide material(food grade stainless steel) quality certification, FAT/IQ/DQ/OQ etc, CE/UKCA Explosion-proof certification and etc to help achieve your desired result.
If you are looking for a reliable grinding solution for agarwood leaves or you are intersted in our equipment, contact Yinda Machinery today to learn more about our equipment.
